10-Slot 10ml PP Vial Case
Custom 10ml Vial Case — 10 Slots, 2 × 5, Stackable
This 10ml vial case holds ten 10ml glass vials in a 2 × 5 twin-row grid, molded cavity by cavity, with the lid rim locking onto the base of the next case for tidy stacking. Factory-direct from our 15,000㎡ plant — stocked clear MOQ 200 pcs, custom color or UV logo from 500 pcs, 15–25 day lead time.
Specifications & Sizes — 10-Slot 10ml PP Vial Case
| Item | Specification |
|---|---|
| Model | 10ml 10-Slot |
| Capacity | 10ml glass vials × 10 (2 × 5 grid) |

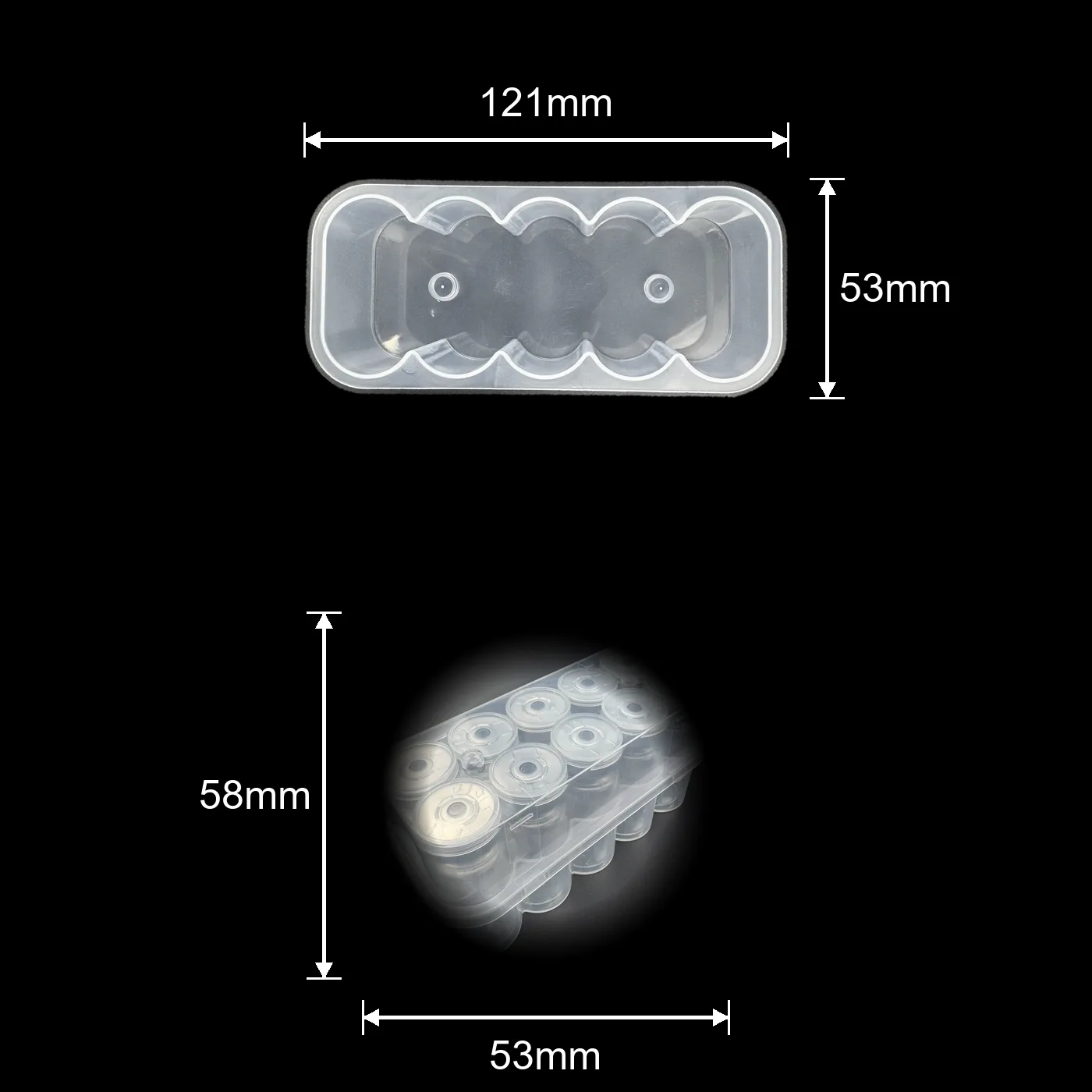

| Outer dimensions | 121 × 53 × 58 mm (incl. 1 mm locating rim) |
| Vial fit (verified) | Standard 10ml glass vial, 22 mm body diameter × 54 mm high |
| Material | Food-grade polypropylene (PP), BPA-free |
| Structure | Two-piece snap closure (lid + base), molded cavities, no foam liner |
| Stacking | Raised lid locating rim mates with recessed base — cases interlock in a column |
| Color | Transparent clear (stocked); custom colors on request |
| Printing | UV printing (standard); special finishes on request |
| MOQ | Stocked clear version: MOQ 200 pcs. Custom color or UV-printed logo: MOQ 500 pcs. |
| Lead time | 15–25 days |
Vial Fit & Protection

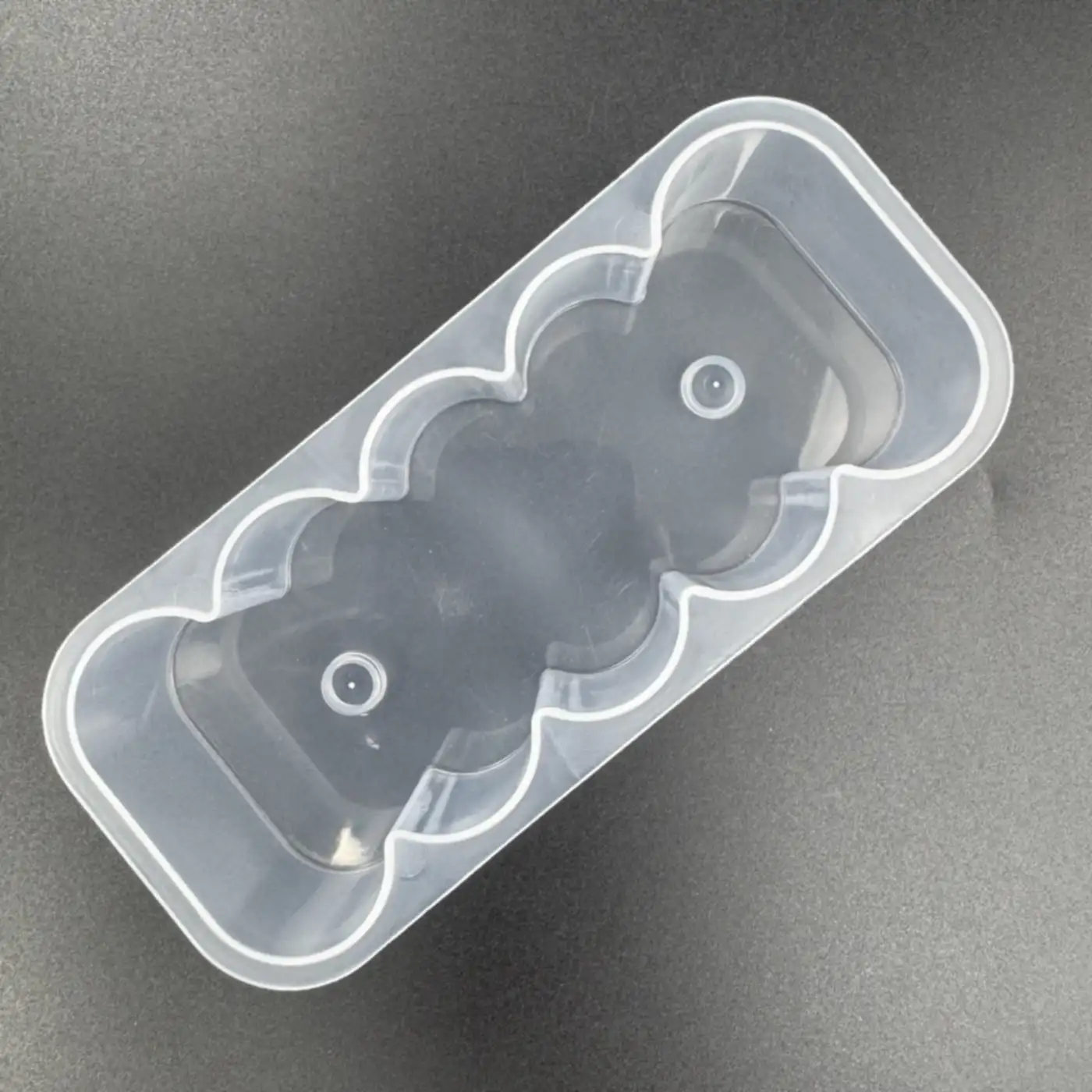

Each cavity is injection-molded to the body of a standard 10ml glass vial. The vial drops in, sits upright, and is held by the cavity wall — no foam, no adhesive, no rattling. The 2 × 5 footprint keeps every label facing up and readable through the clear shell.

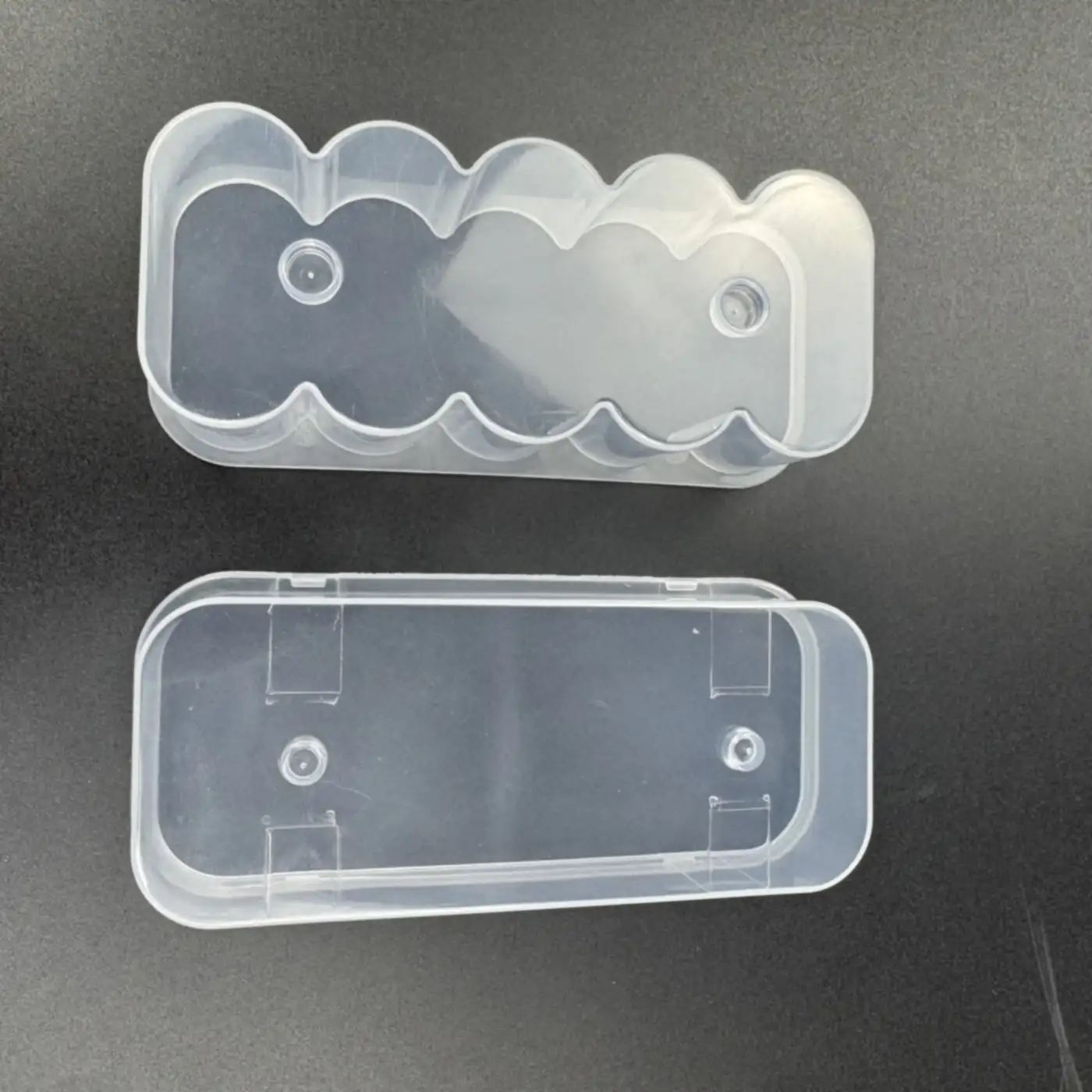

Interlocking Stackable Design — Lid Rim Meets Recessed Base
The 58 mm height includes a 1 mm raised locating rim around the lid, and the base is recessed to the same profile — so the bottom of one 10-slot case seats positively on the lid of another. Boxes lock into a stable tower on shelves, in clinic drawers or inside shipping cartons, with no adapters or trays. As a 10ml vial storage box for bulk programs, this also means a pallet of loose cases turns into neat, self-aligning columns.

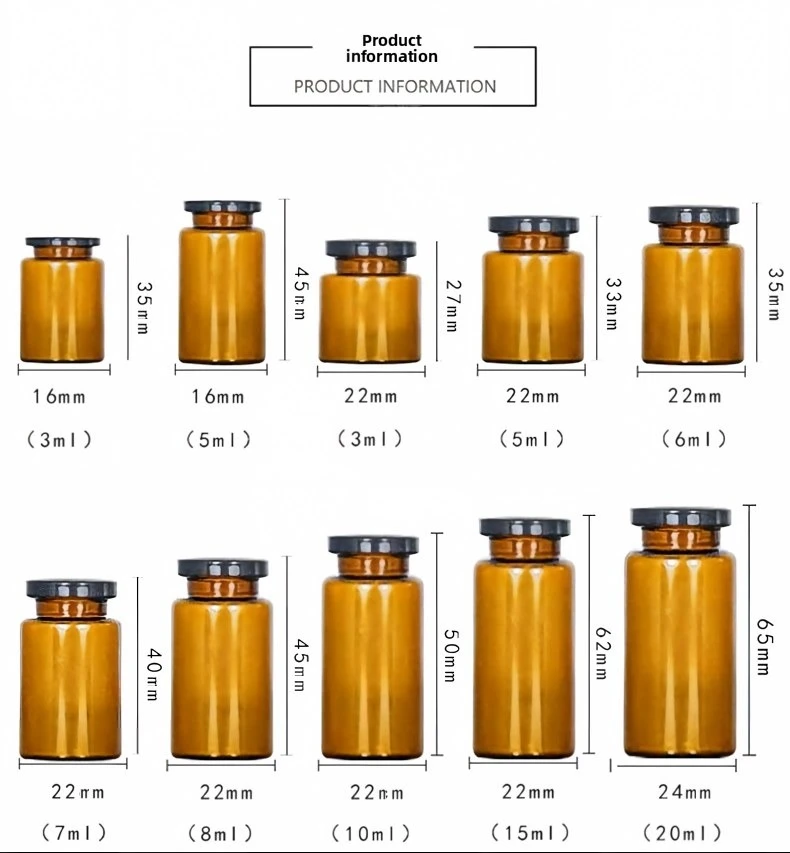

Will Your Vial Fit? Pair It With Matching Glass Vials
This 10-Slot 10ml PP Vial Case is cut for standard 10ml glass vials — we verify every cavity against a master 10ml vial of 22 mm body diameter × 54 mm height. We also supply 2ml glass vials,3ml glass vials,5ml glass vials,20ml glass vials,amber glass vials, and other pharmaceutical glass vials. Order case and vials together and they arrive matched, from one factory, in one shipment.
- 2ml 3ml 5ml Glass Vials — 16 mm body, same stopper
- 3ml 10ml 15ml glass vials — 22 mm body, same stopper
- 20ml 30ml glass vials — 24/27 mm body Order the vial, the tray and the box together and they arrive matched — from one factory, in one shipment.
Why Choose This 10-Slot 10ml PP Vial Case
- Interlocking stack — the raised lid rim seats into the recessed base, so stacked cases stay put.
- Full visibility — the transparent shell shows labels and fill levels without opening the case.
- Molded cavity, zero foam — the vial is located by the cavity wall, so there is no liner to shed fibers or absorb cost.
- Dedicated 10ml mould — cavities sized for the 22 × 54 mm vial, not an adapted 3ml shell.
- Economical at volume — PP injection molding keeps unit cost low for 200+ piece programs.
Real-World Use of the 10-Slot 10ml PP Vial Case
Bulk peptide and hormone vial storage · clinic and veterinary 10ml vial organization · pharmacy shelf display · distributor bulk cartons · starter kits that grow column by column. The 2 × 5 footprint stacks into a stable tower and fits standard shelf depths.
Materials & Food-Grade Construction
Injection-molded from food-grade polypropylene (BPA-free). PP is light, impact-tolerant and moisture-resistant, and the natural material is recyclable. Stocked color is transparent clear; other colors are produced with masterbatch at custom-color MOQ.
Factory QC, Drop Test & Quality Assurance
Every batch passes the same in-house test matrix as the rest of our PP line:
| QC check | What we check & pass standard |
|---|---|
| Drop test | ~1.0 m free-fall spot check on loaded cases each batch (height adjustable to your shipping lane) |
| Snap-closure cycling | 300+ open–close cycles on a test jig; lid must still lock positively after cycling |
| Closing force | Snap-fit engagement checked on a force gauge within agreed tolerance |
| Climate cycling | Temperature/humidity chamber profile simulating sea-freight conditions |
| Material & molding | Raw PP lot certificate + injection parameter log; cavity fit checked against a master 10ml vial |
| Final inspection | 100% appearance and dimension check before packing |
Release flow: batch sampled → in-process log reviewed → final inspection signed → pack out.
Customization Process — Custom Vial Boxes from MOQ 200, Free Sample, 15–25 Days
Custom transparent or solid colors, and your logo printed directly on the shell. Standard printing is UV printing and is included in the quoted unit price; special finishes (e.g. soft-touch or embossed effects) are available on request and may be quoted at a premium. Stocked clear version: MOQ 200 pcs. Custom color or UV-printed logo: MOQ 500 pcs.
Pricing, MOQ & Order Volume
Indicative pricing for this item is quoted in a band of US $0.30 – 0.51 / pc EXW Guangdong, before freight. Where you land inside that band is set by two things: how far the build is customized, and how large the run is. The lower end of the band is not an order-quantity price — it is the level we reach on high-volume and repeat programs, where tooling and print setup are spread over a large piece count. At the MOQ the same stocked clear build is quoted at the figure shown below. We would rather put both numbers on the page than let you anchor on one we cannot hold at small quantities.
| Configuration | Order quantity | Indicative unit price (EXW) |
|---|---|---|
| Standard build — stocked clear, no logo | MOQ — 200 pcs | US $0.36 / pc |
| Standard build — stocked clear, no logo | High-volume runs and repeat orders | towardsUS $0.30 / pc |
| Add your custom UV-printed logo to the standard build | MOQ and up | +US $0.15 / pc (0.36 + 0.15 = US $0.51 / pc) |
| Fully customized build + logo — a custom cavity layout, a different size within the same vial capacity, or a special finish | 500 pcs and up | up to US $0.61 / pc |
In short: US $0.36 / pc for the standard build at the MOQ of 200 pcs, stepping down towards US $0.30 / pc as quantity grows, and up to US $0.51 / pc for a fully customized build with your logo. Every figure is indicative and subject to the specification on your drawing.
Quantity is the main lever. Pricing is quoted against your actual quantity, colour and finishing. A short run carries more setup per piece; high-volume and repeat quantities spread that setup and move the unit price down towards the lower end of the band. Because artwork and tooling stay on file, a reorder skips the setup step. Send your target quantity and we return a tiered quote — for example 1,000 / 5,000 / 10,000 pcs — with the sample plan.
MOQ.200 pcs — stocked clear, no logo. 500 pcs for a custom casing color or your UV-printed logo (add US $0.15 / pc), and for anything further: a custom cavity layout, a different size within the same vial capacity, or a special finish.
Prices are indicative, quoted EXW Guangdong, and exclude freight, duties and packing extras. The final quotation follows your specification, quantity, artwork and packing requirement — quotation within one working day, sample approved before mass production.
FAQ — 10-Slot 10ml PP Vial Case
The 10ml PP Vial Holder Family — 1, 2 and 10 Vials
All three 10ml sizes share the same two-piece snap construction, molded cavities and the interlocking stack profile — pick the count that matches your kit:
- 10-Slot 10ml PP Vial Case (10 vials · 2 × 5 grid · 121 × 53 × 58 mm) — this page
- 2-Slot 10ml PP Case (2 vials side by side · 56 × 35 × 57 mm)
- 10ml Single Vial Holder (1 vial · 35 × 35 × 57 mm)
Need 3ml vials instead? The same two-piece snap construction covers our 3ml PP vial holder family (1–24 vials) — a separate mould line dedicated to the 16 mm vial format.
Send your quantity, color and logo artwork — we reply with a costed sheet and a pre-production sample plan.
