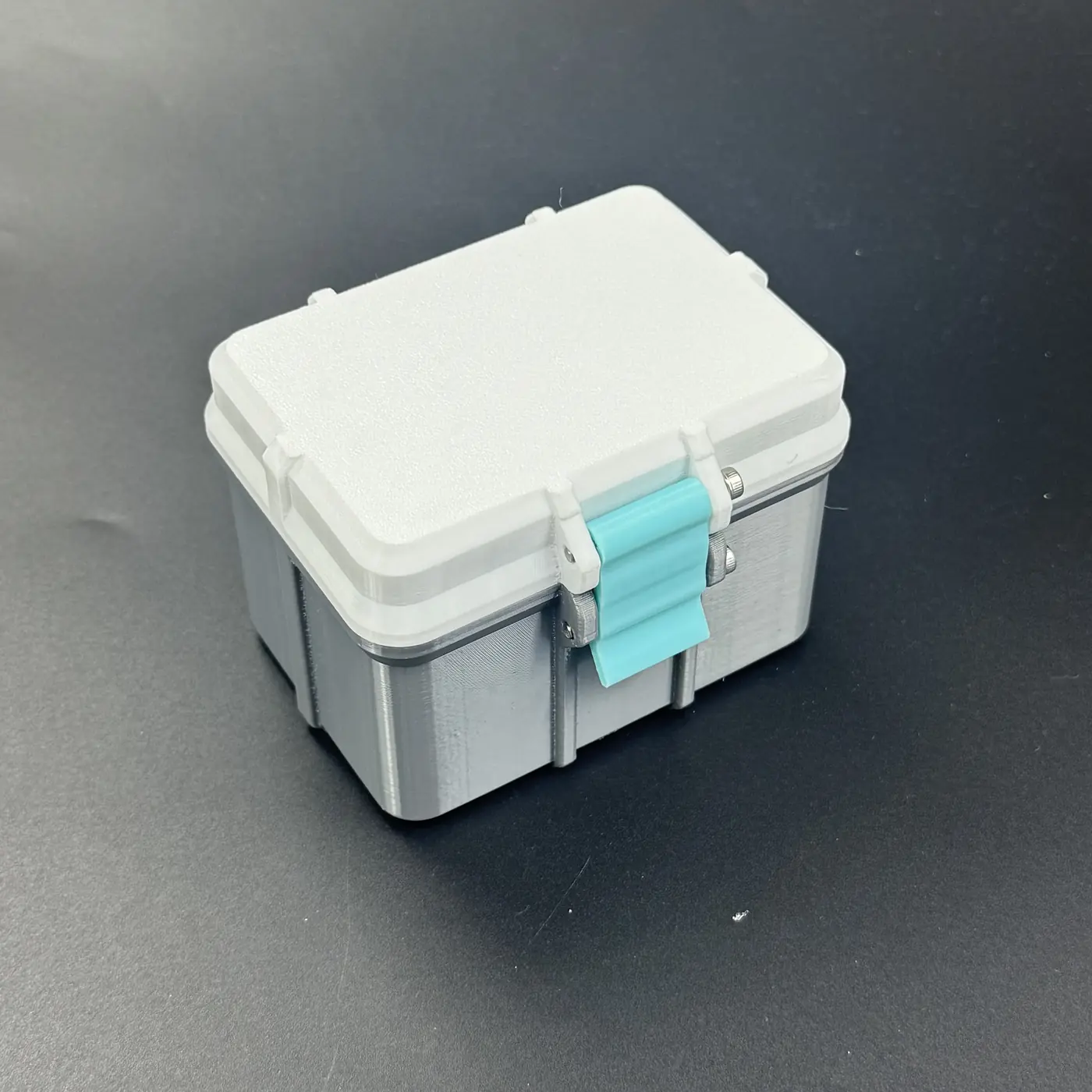

multi-size vial storage box in grey PETG with white lid and teal strap, closed 3/4 view
multi-size vial storage box rear angle showing stainless pin hinges and strap latch
multi-size vial storage box open, six-bore insert in place and foam bonded inside the lid
multi-size vial storage box open with 2ml, 5ml and 15ml vials loaded flush in the six-slot insert
hand holding closed multi-size vial storage box for size reference, 98 x 71 x 70 mm
Model No: Multi 6-Slot

Multi-Size Vial Storage Box — 6-Slot PETG Case for 2ml, 5ml & 15ml Vials

A convertible six-slot PETG vial storage box for mixed inventory: every slot is decided on its own - cavity in takes a 16 mm 2 ml or 5 ml vial (flip the cavity for depth), cavity out takes a 22 mm 15 ml vial - so one box ships 2 ml, 5 ml and 15 ml in any combination. Foam-lined lid, UV logo on lid and base. MOQ 30 pcs; custom color and logo from 50 pcs.
Delivery :
EXW
minimum order :
30 pieces
Supply Ability :
300000pieces / Week
Stock Time :
15-25Day
Country of Origin :
china
size :
color :
capacity :
Quantity :
US $4.40 - US $5.20 / pieces
add to cart
Contact Now
Fuyang Packaging · Since 1994 · Factory Direct

Multi-Size Vial Storage Box — One Case for 2ml, 5ml & 15ml Vials

Thismulti-size vial storage box solves the one problem every growing vial brand has: too many vial sizes, too many boxes. Six dual-depth cylindrical cavities hold 16 mm 2mland5ml vials — flip a cavity to switch size — and lift any single cavity out and that bore takes a 22 mm 15ml glass vial directly. Every slot is decided on its own, so one box ships 2ml, 5ml and 15ml in any combination — six of a size or any mix. A 5 mm foam-lined lid presses every cap flat so nothing rattles. 3D-printed in tough PETG, Pantone-matched to your brand, with UV logo printing on lid and base. Factory-direct from our 15,000㎡ plant — MOQ 30 pcs, indicative US $4.40 – 5.20 / pc, logo print +US $0.20 at 30–49 pcs and free from 50 pcs, 15–25 day lead time.

MOQ 30 pcs2ml · 5ml · 15ml in one boxLogo free from 50 pcs15–25 daysSample 5–7 days

Specifications — Model Multi 6-Slot

ItemSpec
Model NoMulti 6-Slot
Outside dimensions98 × 71 × 70 mm (width excludes strap latch and rear hinge screws)
MaterialPETG, 3D printed; textured non-slip finish
Capacity6 vials in any mix
Vial compatibilityAny slot, any mix — 16 mm 2ml / 5ml with the cavity in (flip for depth) · 22 mm 15ml with that cavity lifted out
Cavity6 removable cylindrical cavities, 16 mm bore, dual depth — deep end for 5ml, shallow end for 2ml
InsertRemovable six-bore insert; insert height matches cavity height so caps sit flush
Foam5 mm foam in the lid only; base is rigid PETG
ClosurePin hinges + over-center PETG strap latch, same system as the rest of our PETG vial box family
LogoUV printing on lid top and base bottom — free from 50 pcs
ColorPantone-matched PETG, any solid color
MOQ / Lead time30 pcs / 15–25 days; sample 5–7 days
Indicative priceUS $4.40 – 5.20 / pc — standard stocked build, EXW; a general quotation, not a lowest or highest price

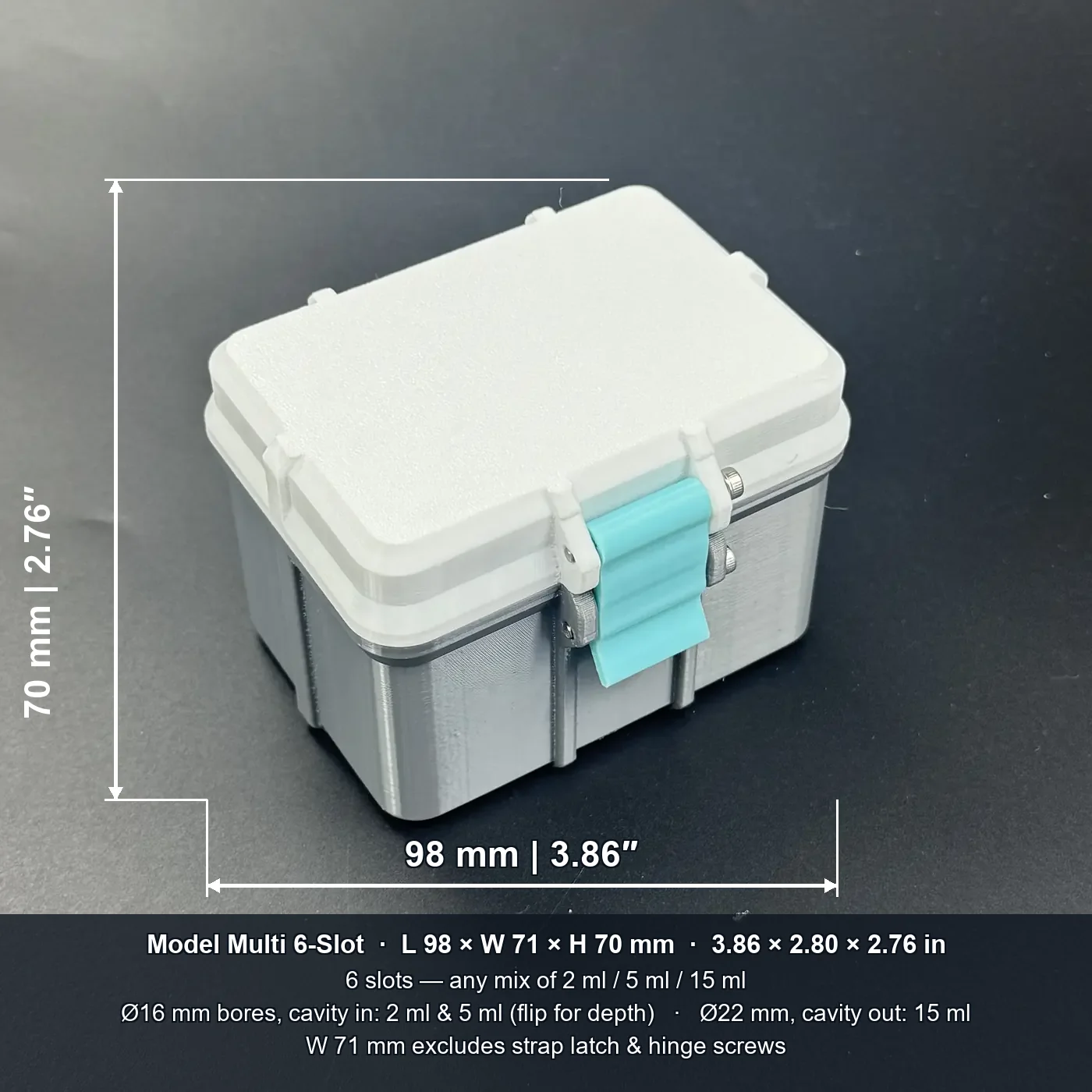

multi-size vial storage box dimensions: 98 x 71 x 70 mm, six slots mixing 2ml, 5ml and 15ml vials in any combination



One Box, Six Slots — Mix 2ml, 5ml & 15ml Any Way You Need

The insert carries six round bores, and every slot is decided on its own. Leave the cavity (we also call it a sleeve) in and that slot takes a 16 mm vial; lift that one cavity out and the same bore holds a 22 mm vial. That single part is what makes this a true multi-size vial box — not a box you pick one size for, but a box you load size by size.

A 16 mm slot — 2ml or 5ml, flip the cavity to switch

Each cavity is printed with the same 16 mm bore on both ends but two different depths. Seat it deep-end-up for a 16 mm 5ml vial, flip it shallow-end-up for a 16 mm 2ml vial. No tools, no second insert.

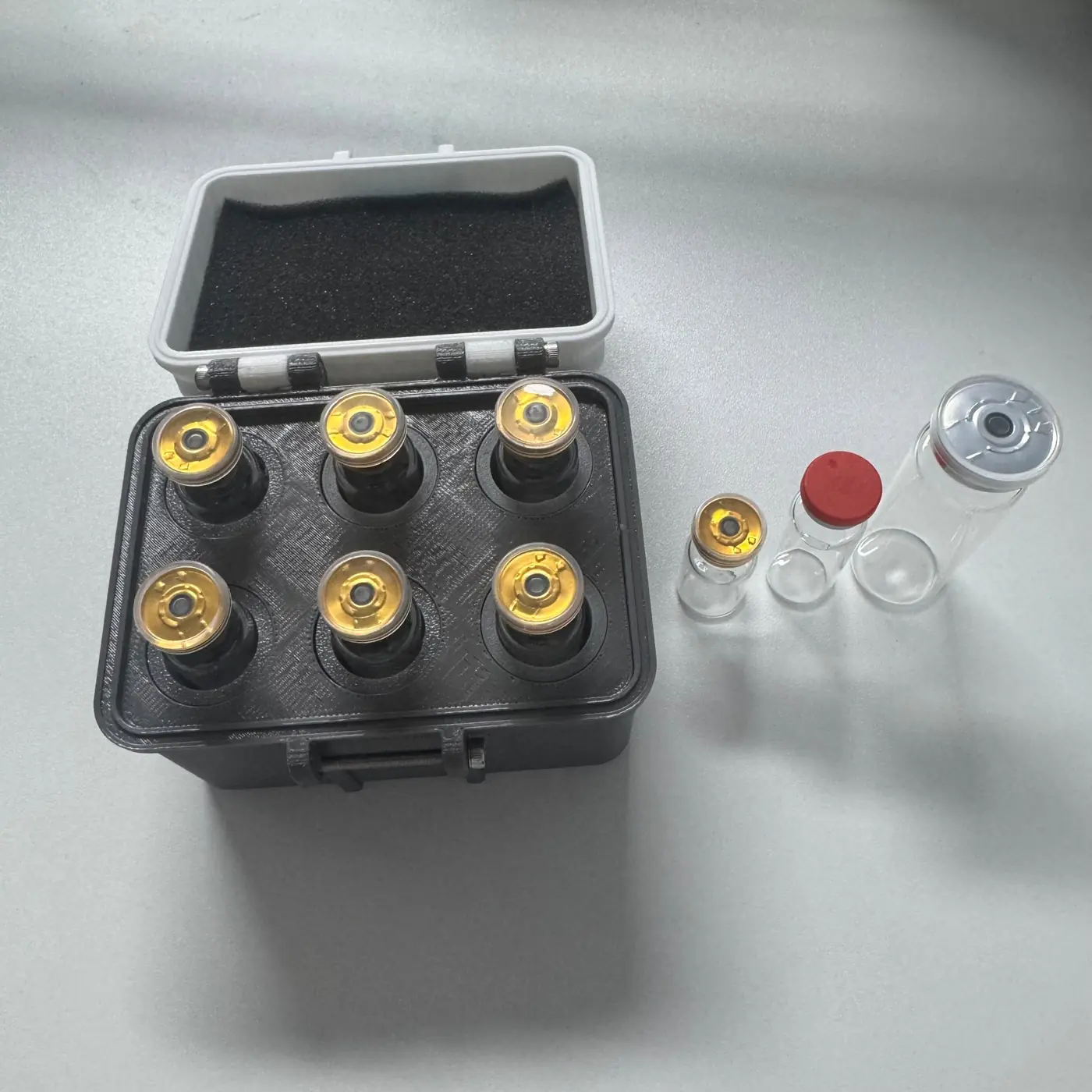

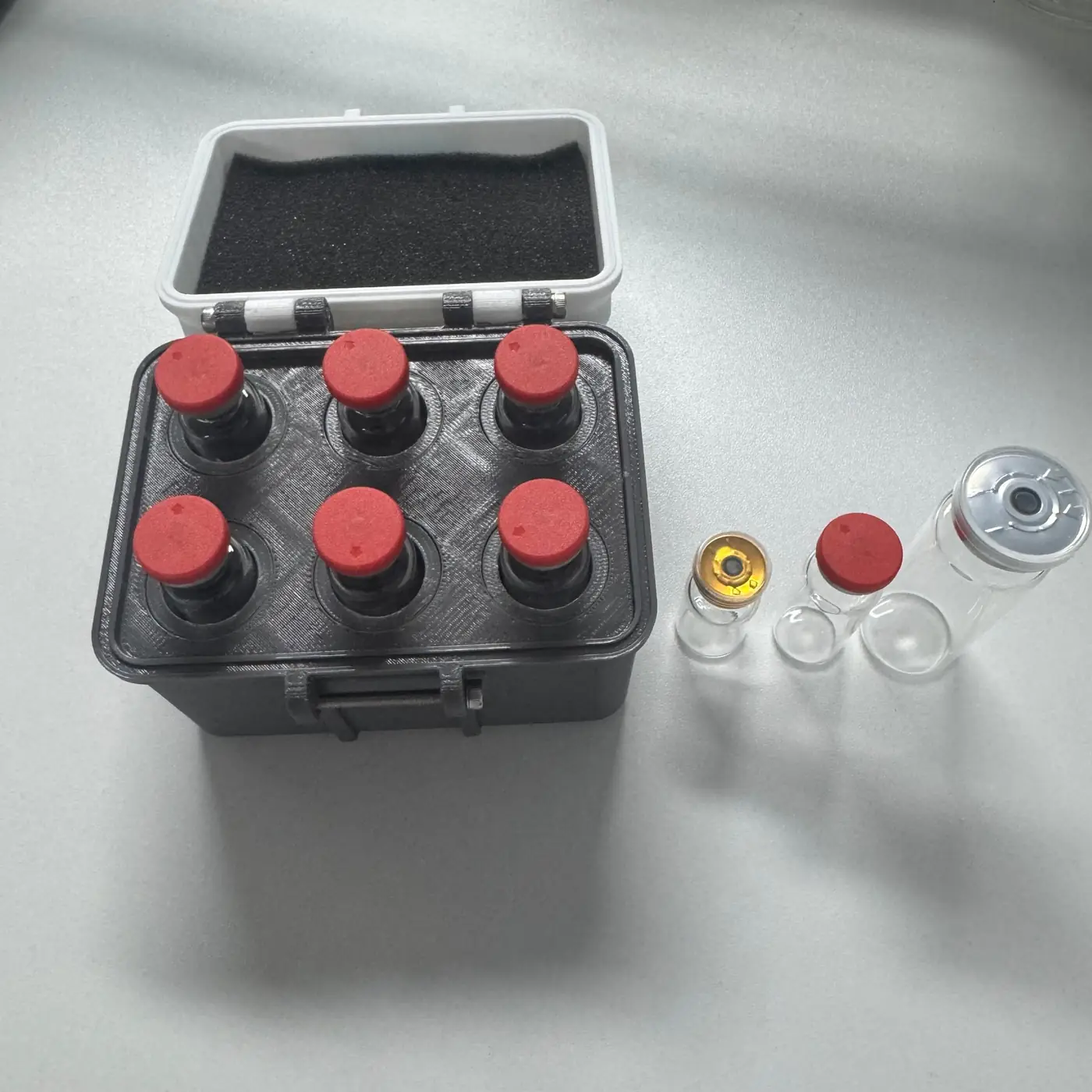

six 2ml vials seated flush in the 16 mm slotssix 5ml vials seated flush in the 16 mm slots

A 22 mm slot — 15ml with that cavity lifted out

Lift one cavity out and its bore takes a 22 mm 15ml glass vial on its own. Lift two and two slots go 22 mm; lift all six for a full box of 15ml. Removed cavities store flat in the shipping carton.

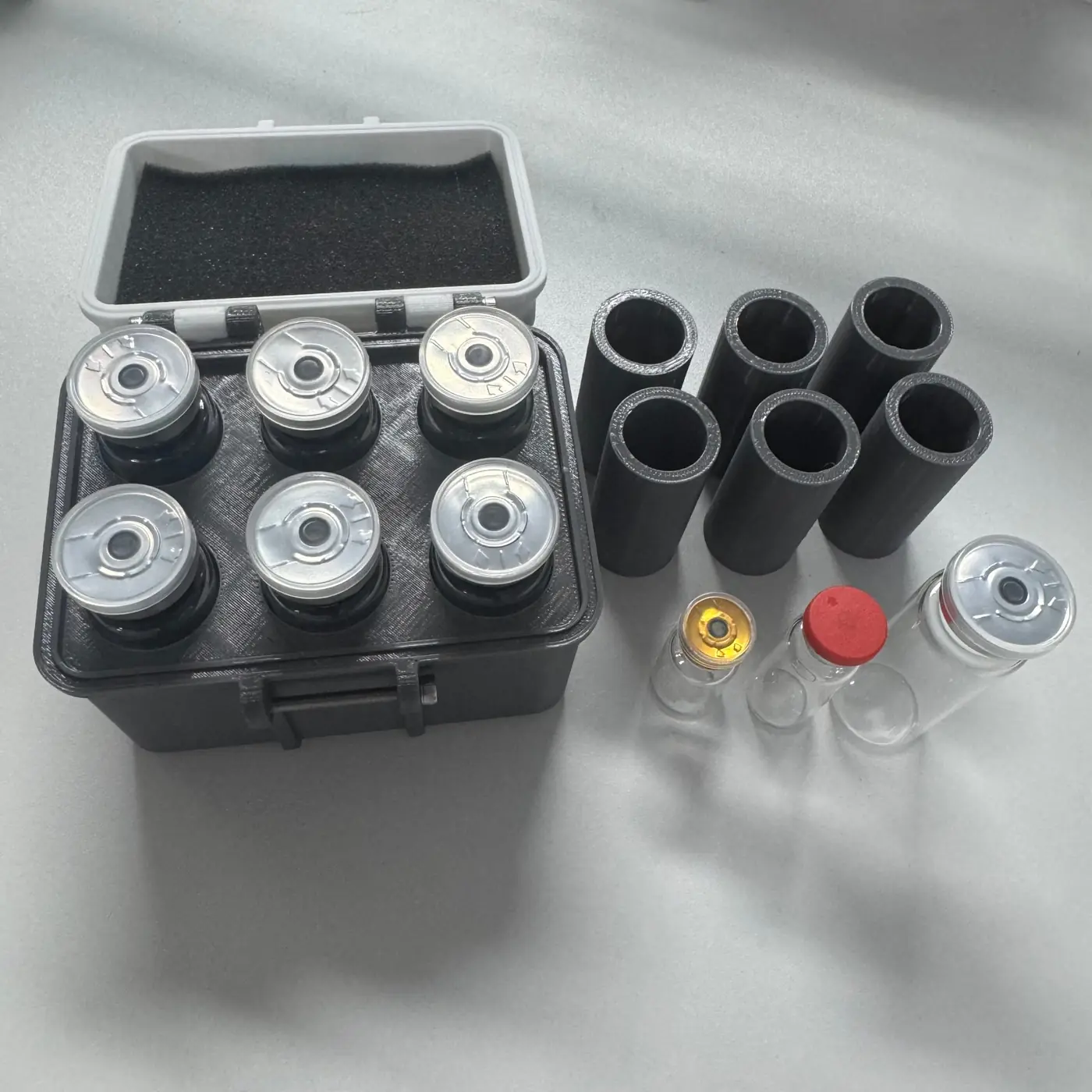

15ml vials seated in the 22 mm bare bores, cavities removed beside

One box, any combination — six slots, three sizes

Because the slots are independent, a single box can ship 2 × 2ml + 2 × 5ml + 2 × 15ml, six of one size, or any other split you need. The 5 mm lid foam presses every cap flat whatever the mix — that is the whole point of a multi-size vial storage box.

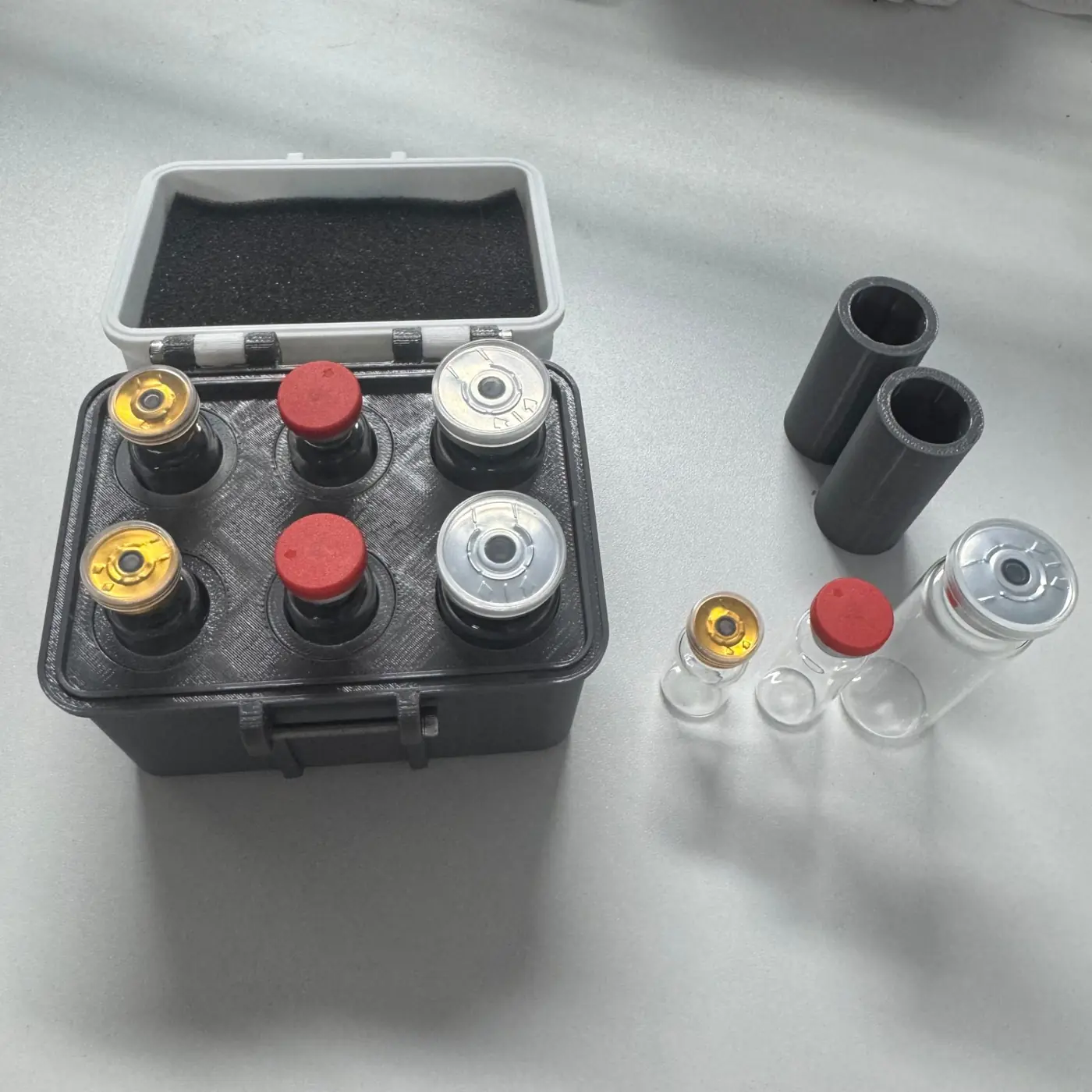

box loaded with 2ml 5ml 15ml vials in any combination

Why vials sit dead-still

Cavity height equals insert height, so a seated vial’s cap finishes flush with the insert face. Closing the lid brings the 5 mm top foam down onto every cap at once — the “high-end, everything flush” look in the photos, with zero rattle in transit. The base has no foam by design: the rigid PETG floor is the reference surface.

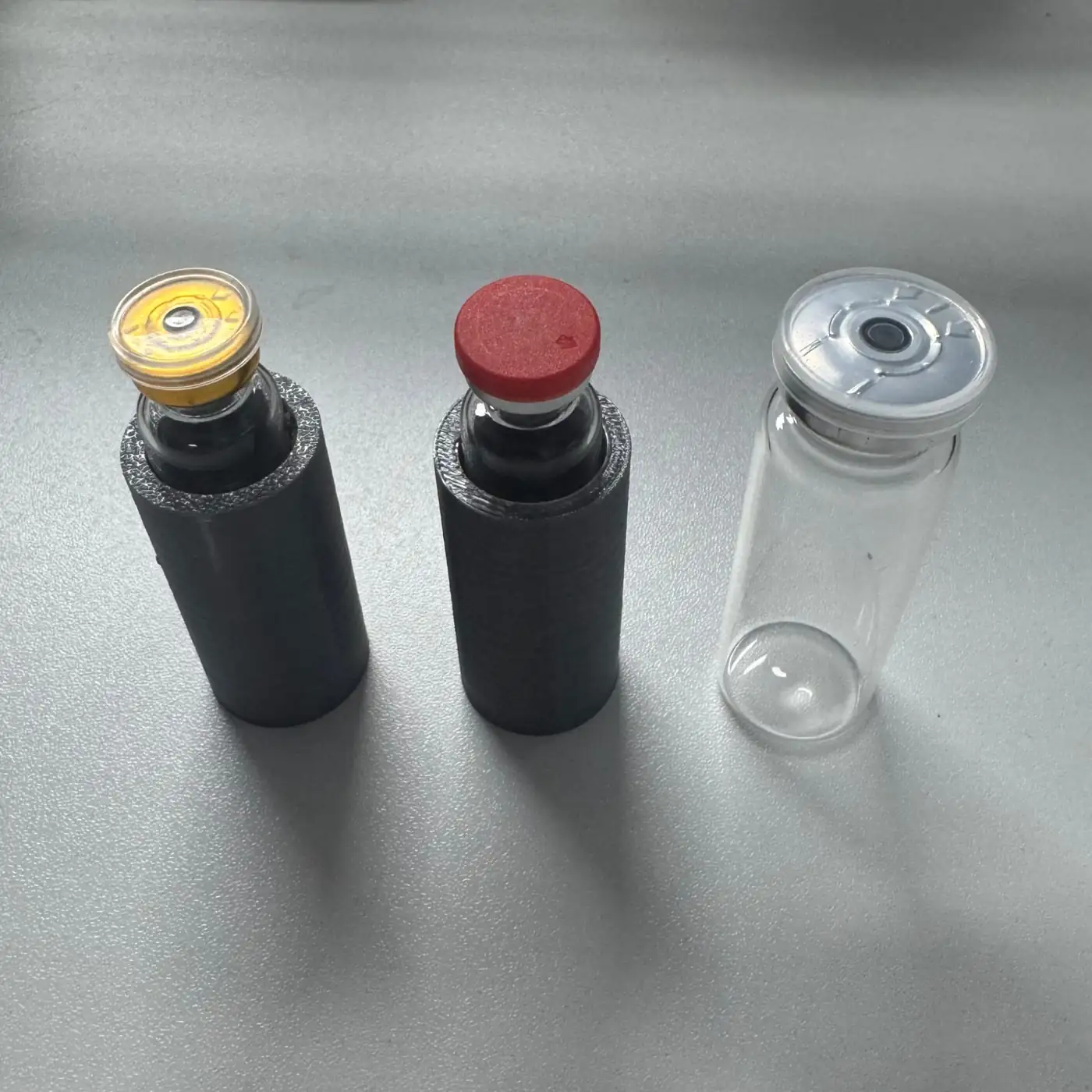

close-up of vials seated flush in dual-depth PETG cavities

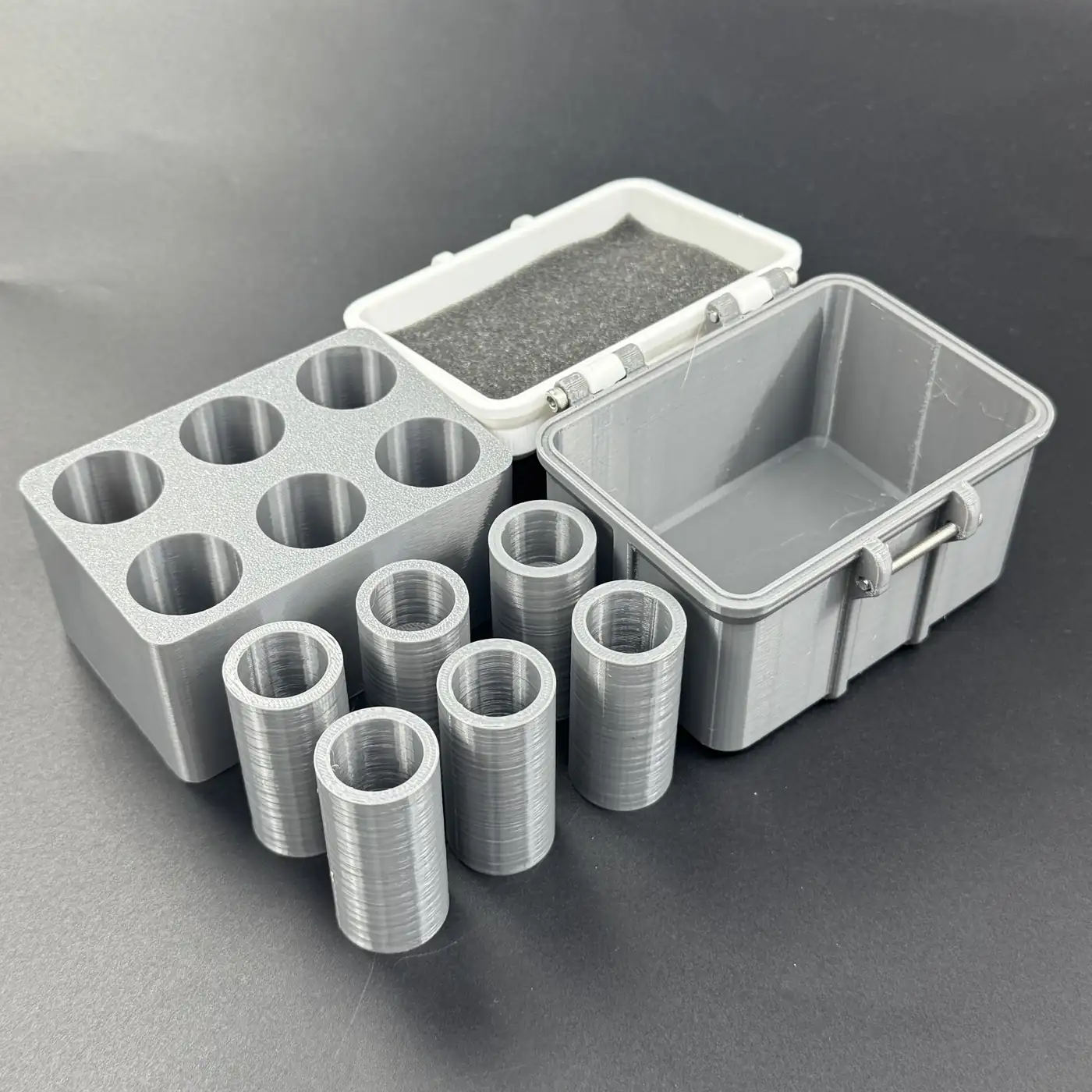

What’s in the box (per set):

1 × base shell
PETG, reinforced corners
1 × lid with 5 mm foam
pin hinges, strap latch
1 × six-bore insert
removable, 22 mm bare bores
6 × dual-depth cavities
16 mm bore, 2ml / 5ml ends

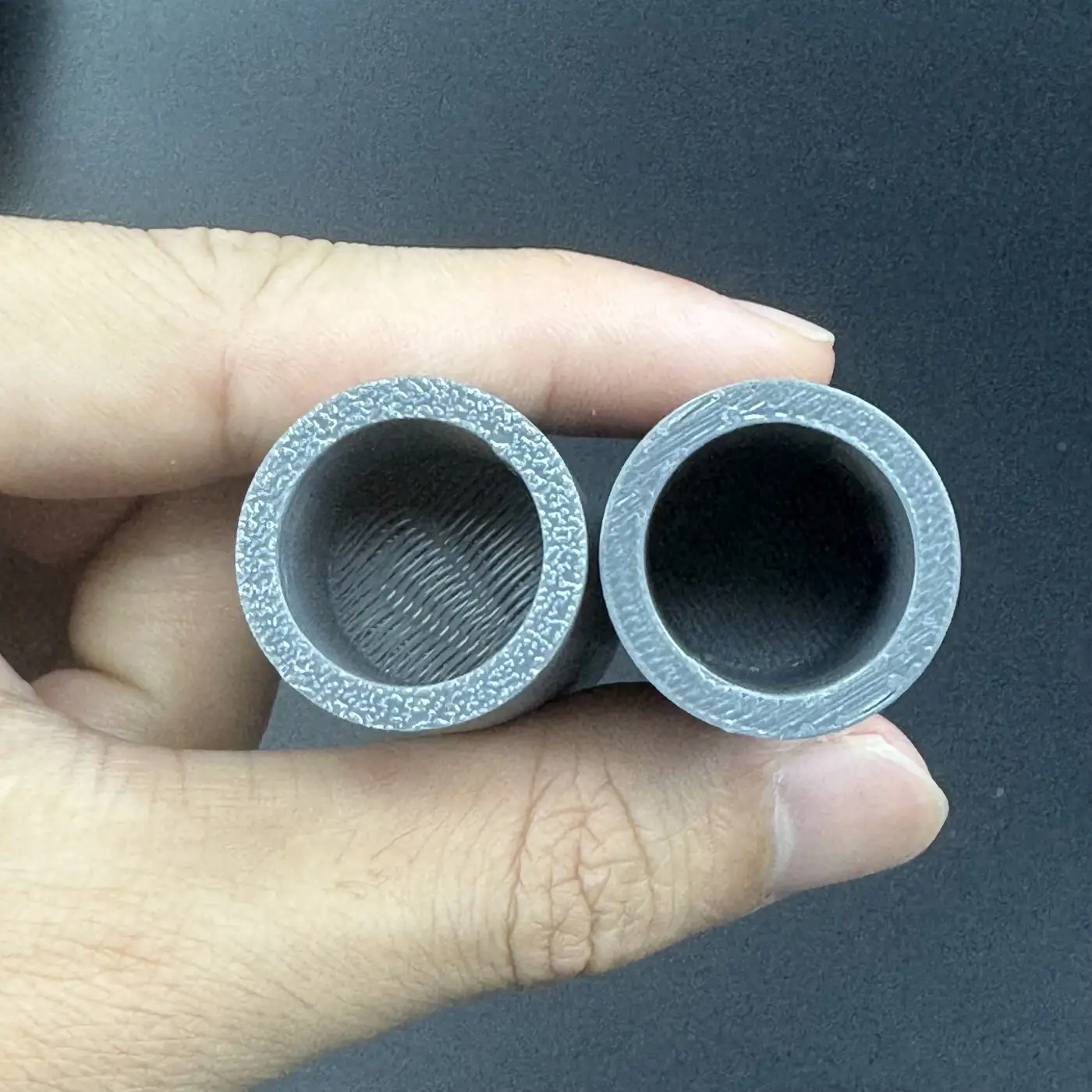

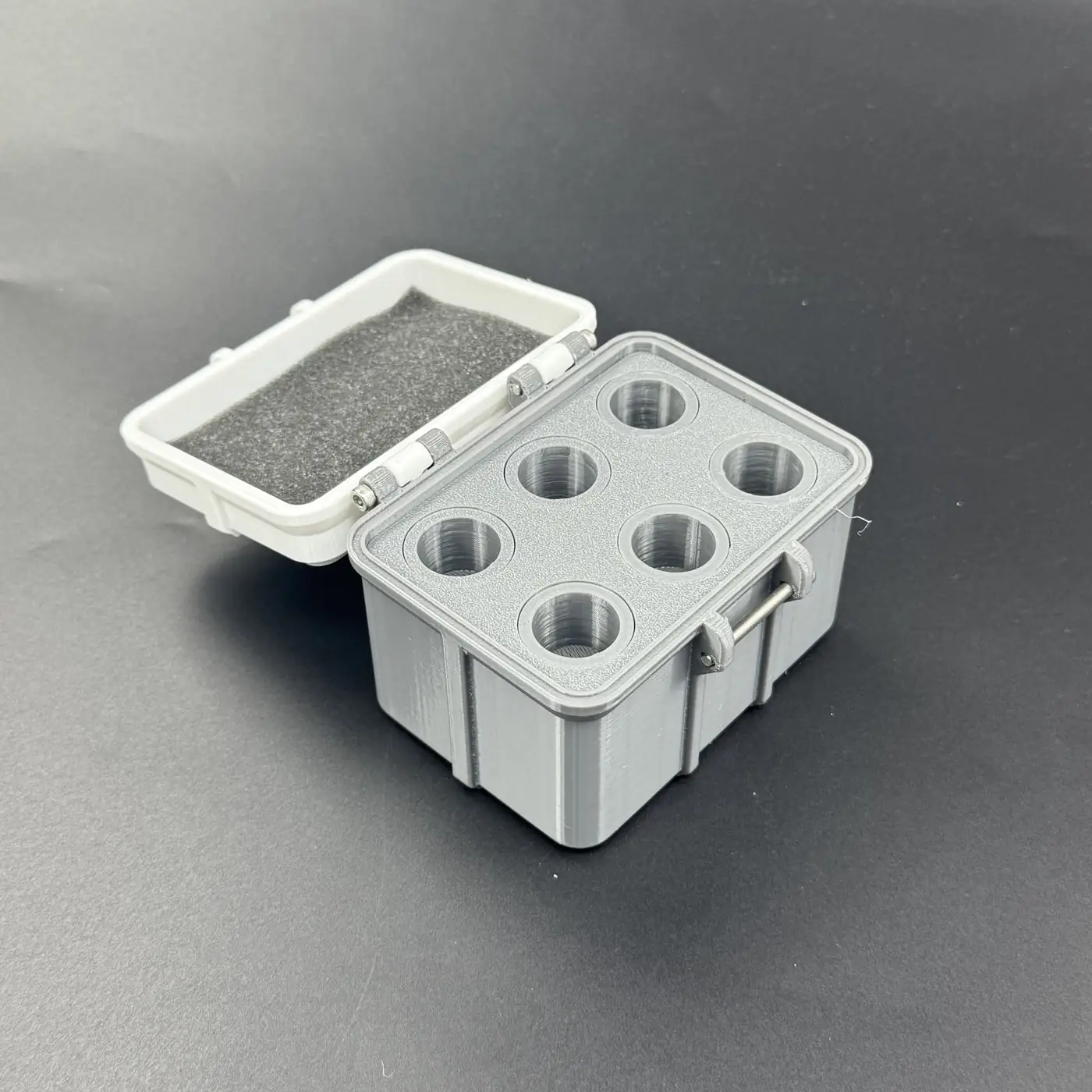

six-bore removable insert of multi-size vial storage box, open lid showing 5 mm foamtwo dual-depth PETG cavities held end-up showing 16 mm bore with different depths for 2ml and 5ml vialsexploded view of multi-size vial storage box: foam-lined lid, six-bore insert, six cavities and base shell

Same Closure as Our PETG Vial Box Family

The lid runs on two stainless pin hinges and closes with an over-center PETG strap latch — the same closure system as the rest of our custom PETG vial boxes, so a customer who already stocks one model gets identical handling. The shell is printed as one piece with reinforced corners, and the strap is printed in the same PETG as the shell.

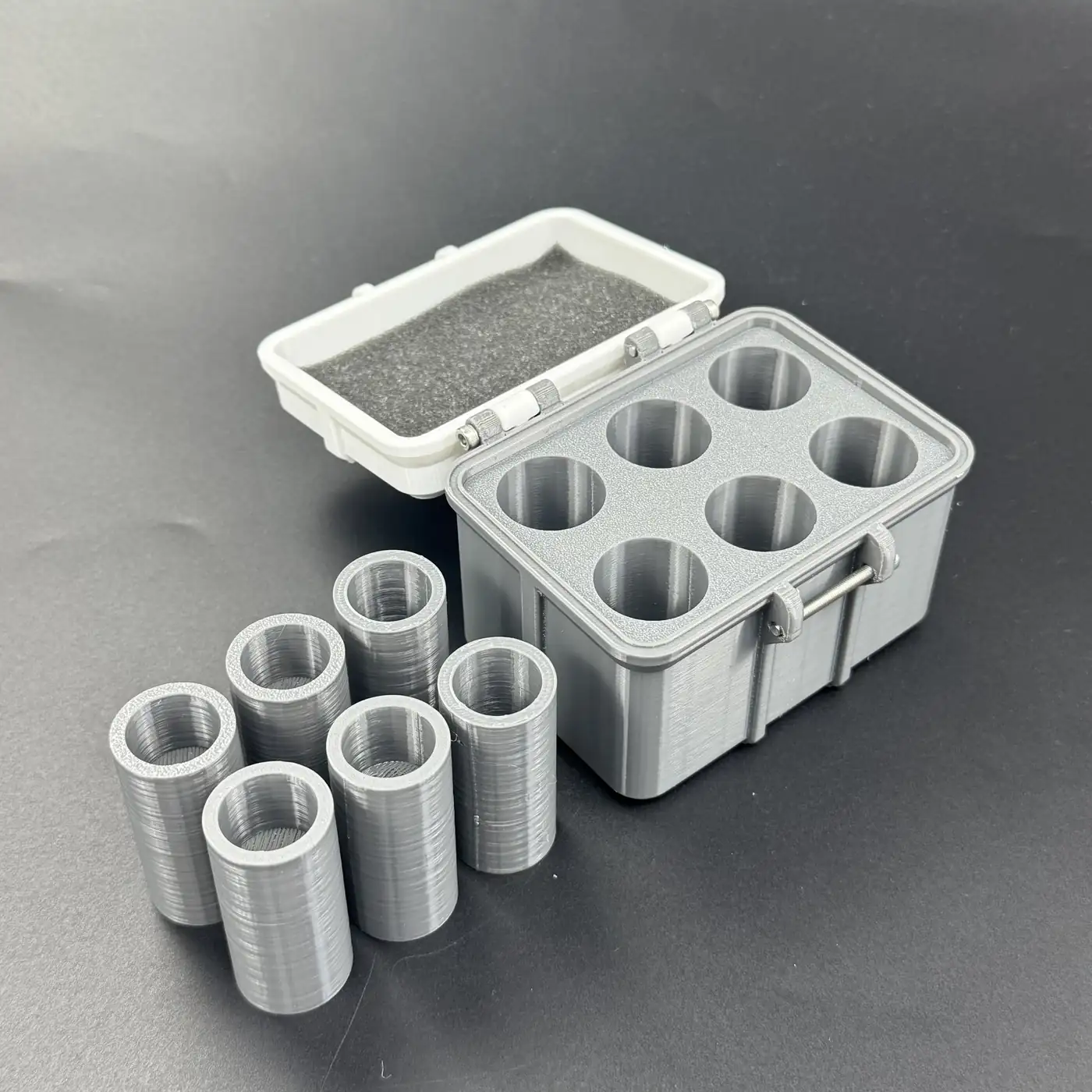

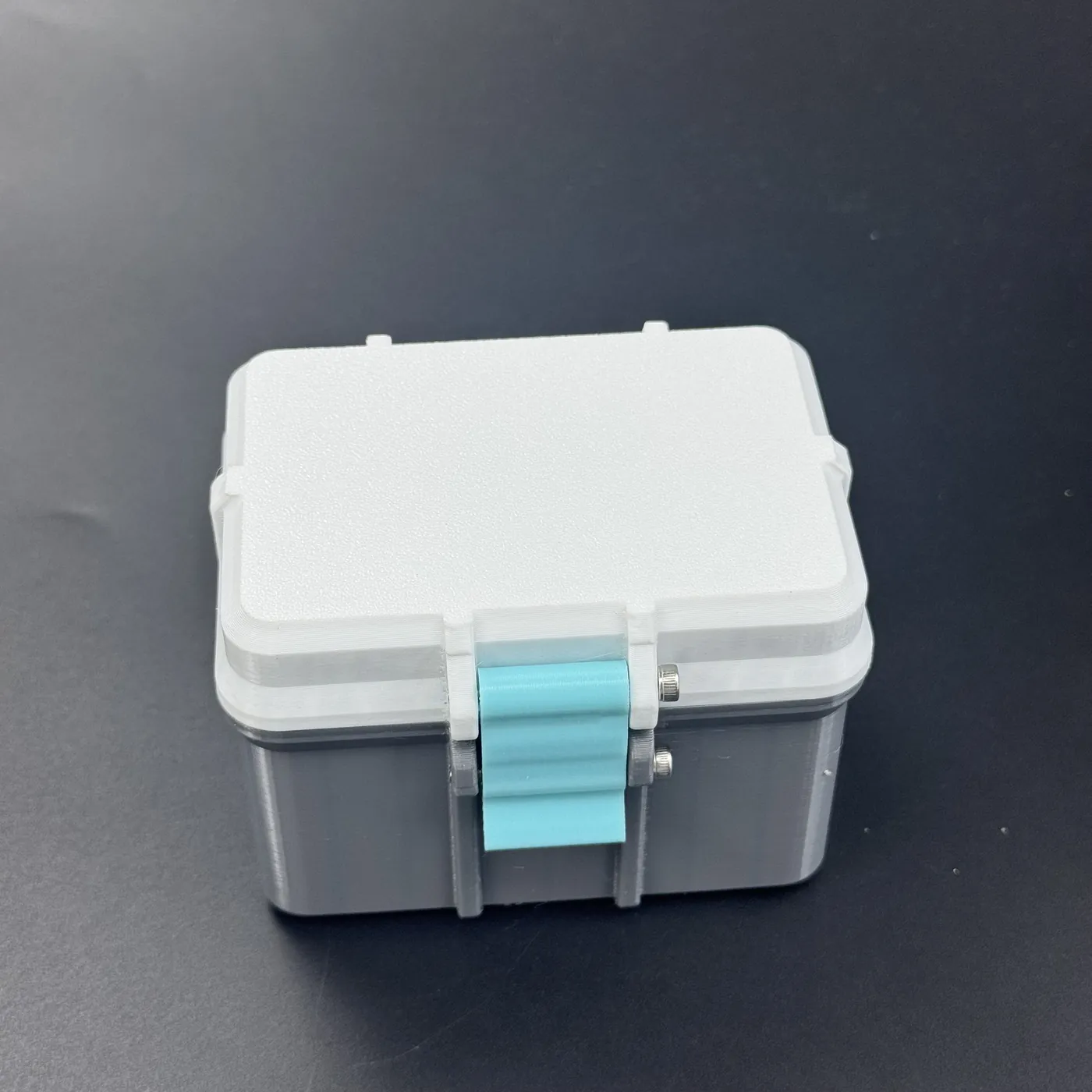

front view of closed multi-size vial storage box showing strap latch alignmentmulti-size vial storage box with all six cavities removed and lined up beside the open insert

Will Your Vial Fit? Pair It With Matching Glass Vials

The two cavity depths are cut for standard 16 mm 2ml and 5ml vials, and the bare bores for 22 mm 15ml vials — the sizes most peptide, hormone, and cosmetic serum brands ship in. We also supply glass vials in these sizes, so you can order box and vials together, matched and packed in one shipment from one factory. Send us your vial drawing if you are between sizes and we will confirm the fit before you order.

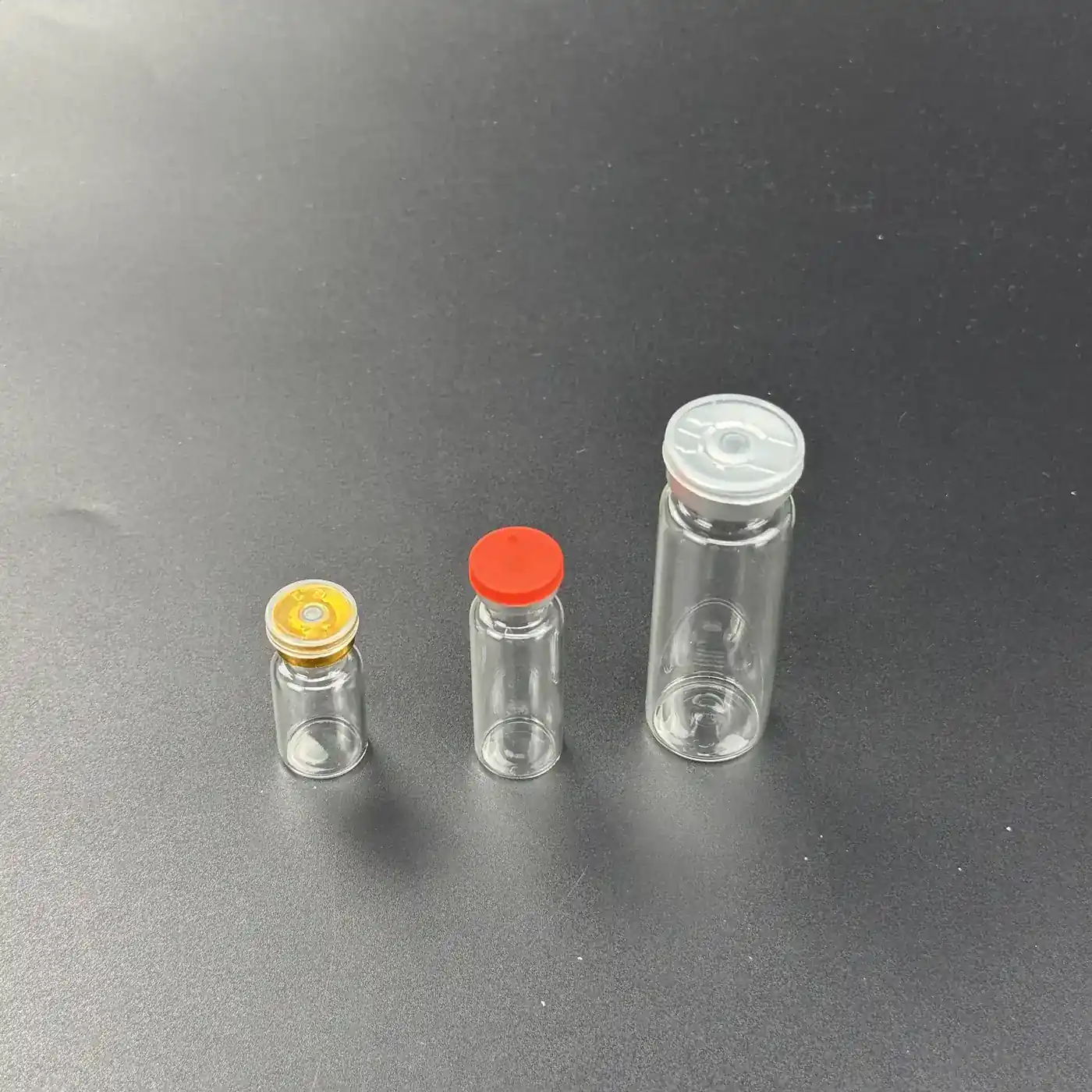

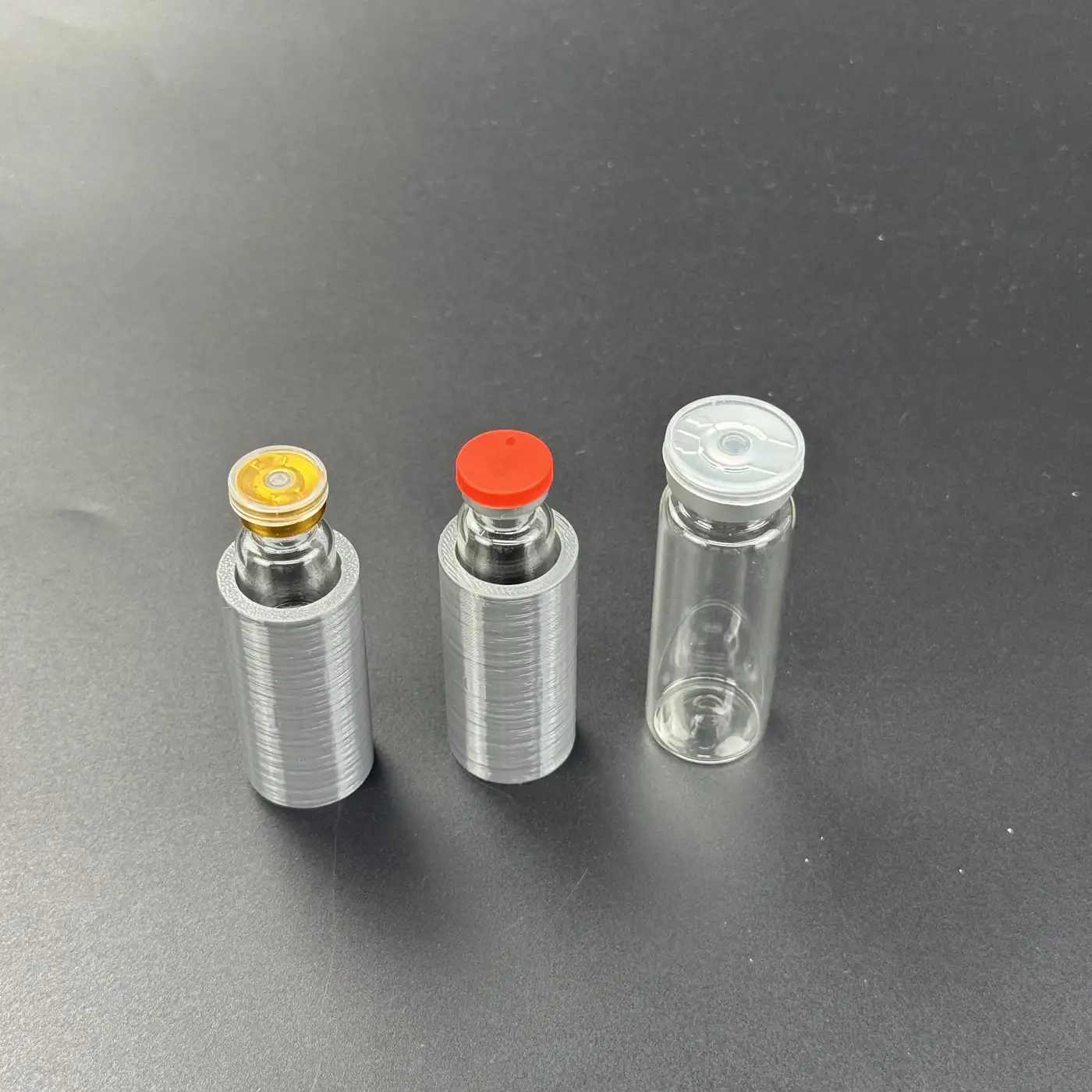

16mm 2ml vial, 16mm 5ml vial and 22mm 15ml glass vial side by sidecavities-C02.webp2ml and 5ml vials seated inside dual-depth PETG cavities next to a bare 15ml vial

Why Choose This Multi-Size Vial Storage Box

  • One SKU covers three vial sizes — 2ml, 5ml and 15ml configurations from a single box, so your packaging inventory stays short.
  • Flip-to-switch cavities — no buying a second insert; the same 16 mm cavity serves both depths.
  • Flush, rattle-free presentation — caps finish level with the insert face and the 5 mm lid foam locks them.
  • Low MOQ 30 pcs — realistic for new brands and test runs; scale up on the same tooling.
  • Pantone-matched PETG — solid colors printed to your brand palette, not a fixed stock list.
  • Logo on lid and base — UV printing on both faces, so the brand shows closed and in use.

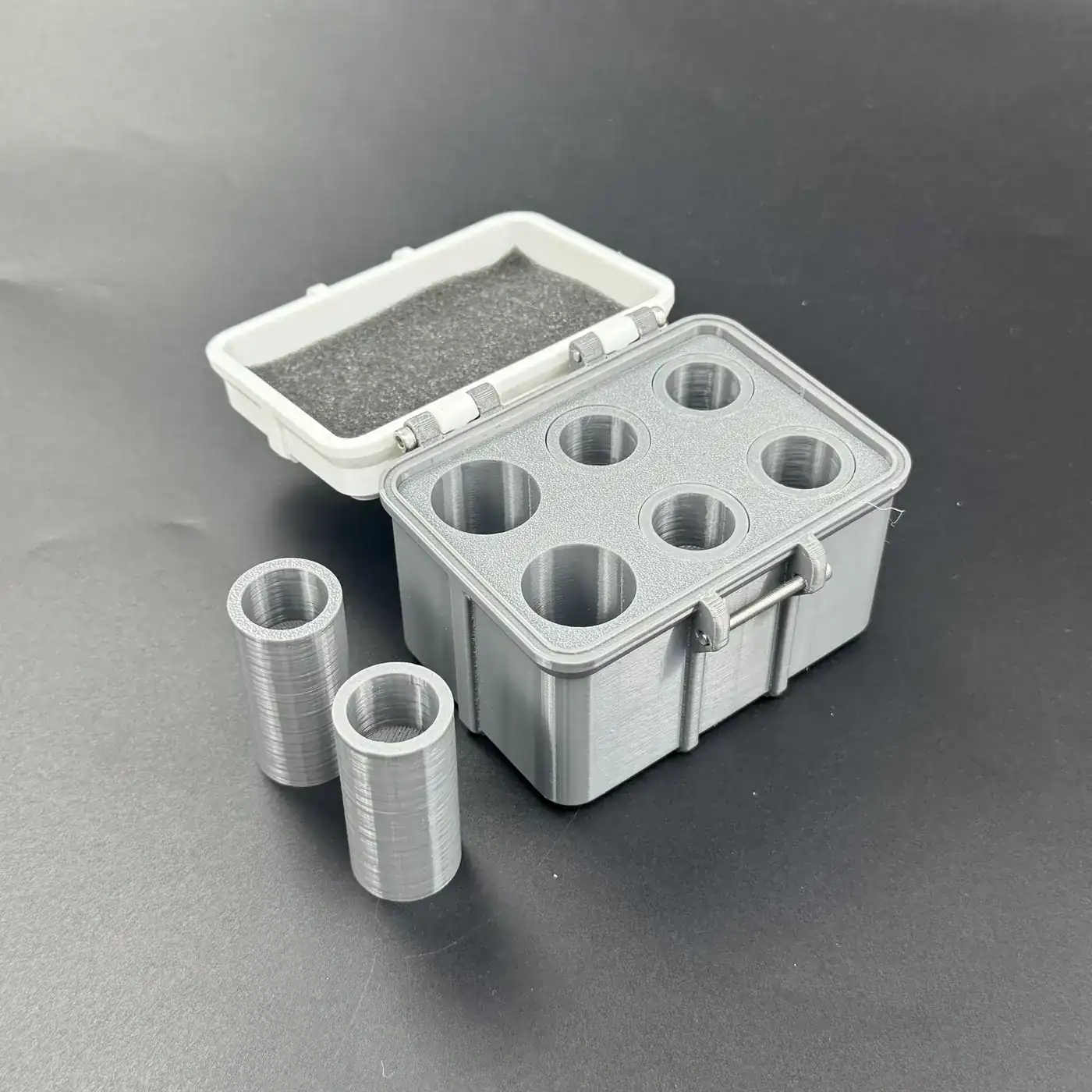

 two PETG cavities of different depths beside the open multi-size vial storage box

Applications

Peptide & research brands
2ml/5ml vial kits, mixed-size starter sets
Cosmetic serums
5ml serum vial retail boxes with logo
Lab & sample logistics
15ml vial transport in a lidded, foam-topped case
Subscription & gift sets
mixed 2ml/5ml assortments in one shell

Materials & Construction

Shell, insert and cavities are 3D printed in PETG — impact-resistant, chemical-tolerant, and dimensionally stable in transit. PETG is vacuum-dried before printing. Textured surface finish keeps fingerprints and scuffs off the look. Hinge pins and latch screws are stainless; the strap is printed in the same PETG as the shell; lid foam is a 5 mm closed-cell sheet bonded inside the lid.

close-up of textured PETG cavity walls and 16 mm bore surface finish



Factory QC, Drop Test & Quality Assurance

Every batch passes our in-house test matrix before packing — the same line our vial cases have shipped under since 1994:

QC checkWhat we check & pass standard
Drop testFree drop from approx. 1.0 m onto a hard surface, sampled from every batch; the strap latch must stay closed and vials unharmed.
Latch & hinge cycling300+ open-close cycles on our cycling rig; strap latch and pin hinges must still work positively at the end.
Cavity fit checkEach 16 mm cavity is gauge-checked with a 16 mm vial and each bare bore with a 22 mm vial; vials must sit flush with no rattle.
Climate cyclingRepeated high-humidity, high-temperature cycles simulating sea freight; no warping, no foam delamination.
Material moisturePETG is vacuum-dried before printing so printed parts stay tough and dimensionally stable.
Final inspection100% visual and dimensional check of shell, insert, cavities, strap, and foam before packing.

Release flow: batch sampling through the matrix above → re-work or scrap on any failure → final inspection → packing. Equipment: drop rig, cycling rig, force gauge, climate chamber, vacuum dryer.

Customization — Colors, Logo & Packaging from MOQ 50

  • Color: Pantone-matched PETG for shell, lid, strap and cavities (each part can take its own color).
  • Logo: UV printing on the lid top and base bottom — free from 50 pcs; artwork in AI/PDF, free mockup before production.
  • Insert: bore diameter and depth can be re-cut for other vial sizes on the same shell — tell us the vial, we cut the cavity.
  • Packaging: individual poly bag + foam wrap as standard; gift-box upgrade available.
  • Lead time: 15–25 days after artwork approval; sample 5–7 days.

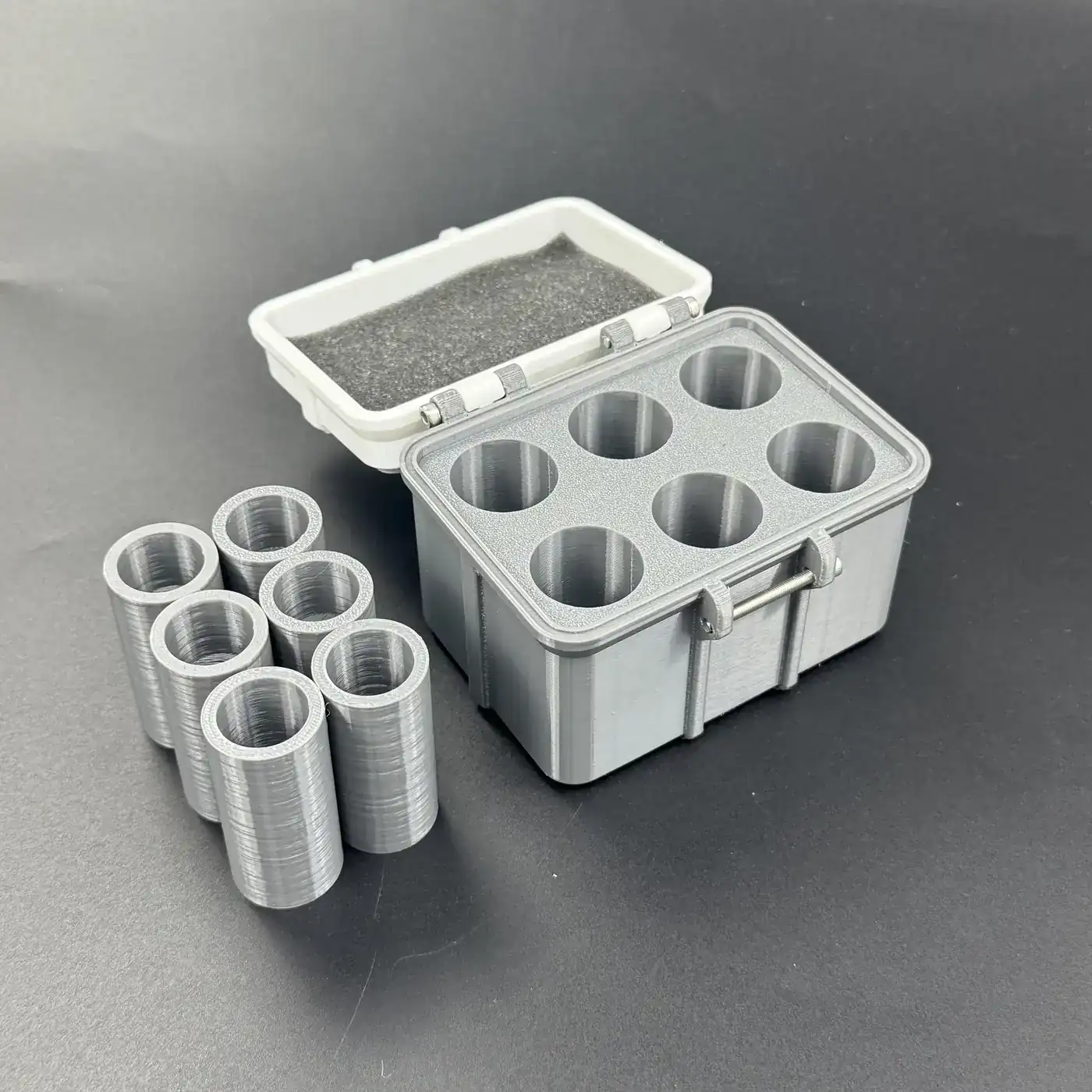

multi-size vial storage box with lid open and all six cavities arranged beside it, full kit view

Pricing, MOQ & Order Volume

ItemDetail
Indicative priceUS $4.40 – 5.20 / pc
Price at 30–49 pcs, no logoUS $5.20 / pc
Price at 30–49 pcs, with your UV-printed logoUS $5.40 / pc — +US $0.20 for the print
Price from 50 pcs, logo includedUS $5.20 / pc
How to read this rangeThe low end of the band is the high-volume level, not an order-quantity price; the top of the range is what a 30–49 piece run carries without a logo. A UV-printed logo adds US $0.20 per piece at 30–49 pcs and is included free from 50 pcs. Custom builds and larger runs are quoted on your specification and quantity.
MOQ30 pcs; mixed colors can be split inside one order (confirm the split with us)
Free logo printingFrom 50 pcs free — UV print on lid top and base bottom; +US $0.20 per pc at 30–49 pcs
Lead time / Sample15–25 days after artwork approval / sample 5–7 days
Volume ordersRepeat and volume orders are re-quoted on the same tooling — ask for a quantity ladder

Tell us vial size, colors, number of print positions and target quantity, and we return a firm quote within 24 hours — no obligation.

FAQ — Multi-Size Vial Storage Box

How do I switch a slot between 2ml and 5ml vials?
Flip the cavity. Both ends share the same 16 mm bore; the deep end seats a 5ml vial, the shallow end a 2ml vial. No tools, no extra parts.
Can I mix 2ml, 5ml and 15ml vials in one box?
Yes — it is built for that, slot by slot. Cavity in for a 16 mm 2ml or 5ml vial, that cavity lifted out for a 22 mm 15ml vial. Any combination adding up to six vials, e.g. 2 × 2ml + 2 × 5ml + 2 × 15ml.
Do the 15ml vials need anything extra?
No. Remove the six cavities and the bare bores hold 22 mm 15ml vials directly; the lid foam still presses the caps.
Where is the foam, and why is there none in the base?
The 5 mm foam sheet is bonded inside the lid only. The rigid PETG floor is the seating surface — cavities and bare bores are cut so vials rest flush, and the foam takes up the last few millimeters on closing.
Can you print my logo, and where?
Yes — UV printing on the lid top and base bottom, free from 50 pcs. Send AI/PDF artwork; we return a mockup for approval before production.
What are the MOQ, lead time and sample terms?
MOQ 30 pcs, lead time 15–25 days after artwork approval, sample 5–7 days. Mixed colors can be split within one MOQ order — confirm the split with us.
What does the box cost?
Indicative pricing is US $4.40–5.20 per piece — a general quotation rather than a floor or ceiling. The firm price depends on how much customization you add (print positions, Pantone colors, re-cut cavities) and on order quantity. Send your spec and volume and we quote within 24 hours.
My vial is not 16 mm or 22 mm — can the cavity be re-cut?
Yes. The insert and cavity geometry is printed, not molded, so bore diameter and depth can be adapted to your vial drawing on the same shell.

The Custom PETG Vial Box Family

This box sits inside our PETG hard-shell family. If you need other footprints or single-vial carry, see: Single Vial Holder for 3ml Vials,Custom 10ml Vial Case,Custom Vial Storage Box — 5-Slot 3ml PETG Box,Drop-Proof PETG Peptide Vial Box, and 3ml & 15ml glass vials to fill the box with. Full family index: Custom PETG Vial Boxes.
