3ml 6-Vial PVC Blister Tray
3ml 6-Vial PVC Blister Tray — Six Vials in a Stackable Liner
This3ml 6-vial blister tray arranges six 3ml glass vials in one clear rigid PVC liner, each pocket formed in two segments — an upper clamp on the vial neck and a lower cradle under the glass body. Stack empty trays to cut storage and freight volume, or set a loaded tray inside a gift box as the liner. Shown in clear; other colors run on request. Factory-direct from our 15,000㎡ plant — MOQ 1,000 pcs, free sample, 15–25 day lead time.
Specifications & Sizes — 3ml 6-Vial
| Item | Specification |
|---|---|
| Model | 3ml 6-Vial |
| External size (L × W × H) | 125 × 55 × 18 mm |
| Capacity | 6 × 3ml glass vials (⌀ 16 mm body, 13 mm crimp) |
| Also seats | ⌀ 16 mm 2ml vials — slight headroom, neck clamp still engages |
| Material | Clear rigid PVC, vacuum-formed |
| Color | Clear/transparent shown; other colors on request |
| Structure | Six lying pockets, two segments each — neck clamp + body cradle |
| Stackable | Yes — stack empty trays for storage and transit |
| Printing | Trays ship unprinted; logo printing is generally not supported on this item |
| MOQ | 1,000 pcs |
| Sample | Free sample, photographed for approval before mass production |
| Lead time | 15–25 days after order confirmation |

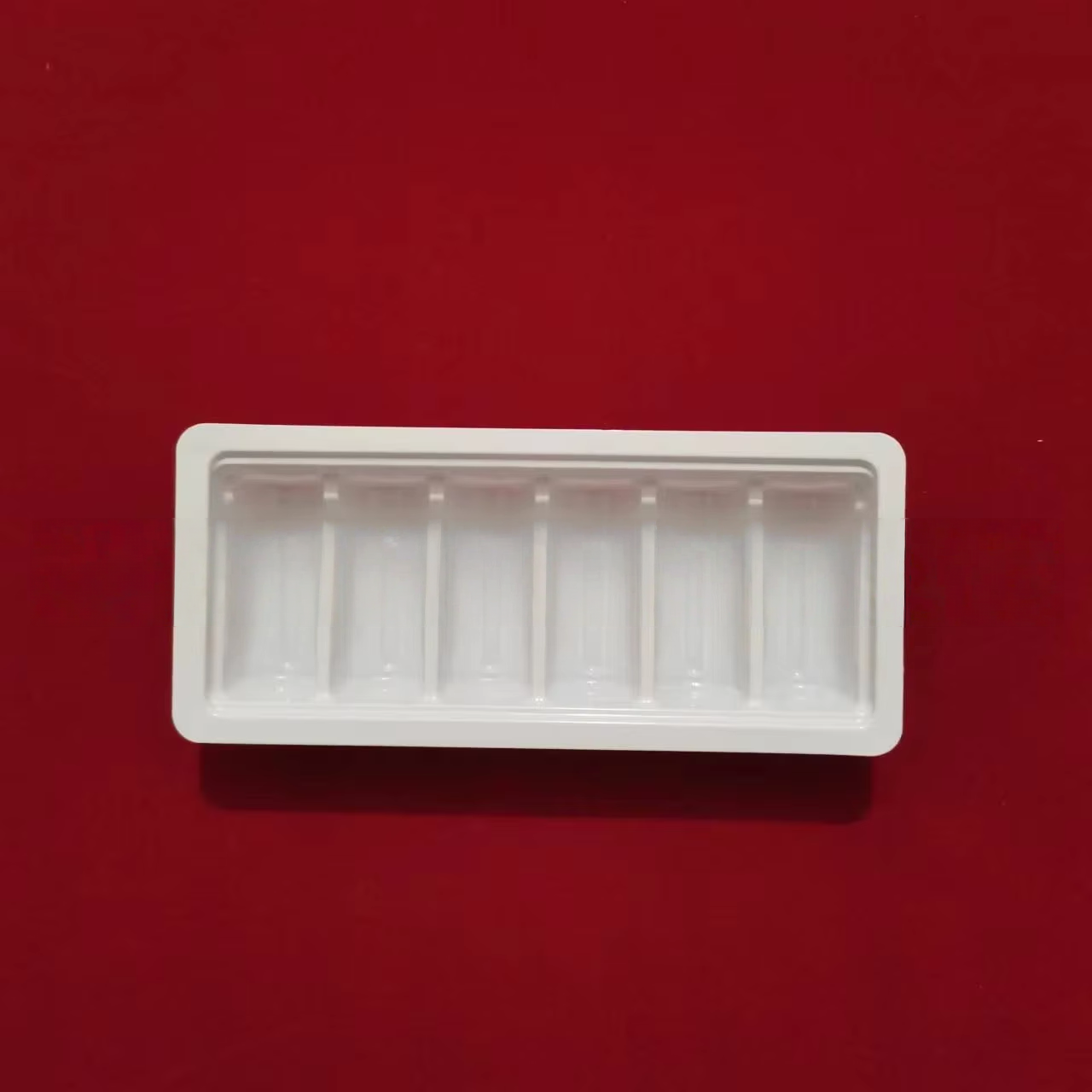

Six-Cavity Lying Structure — Neck Clamp + Body Cradle

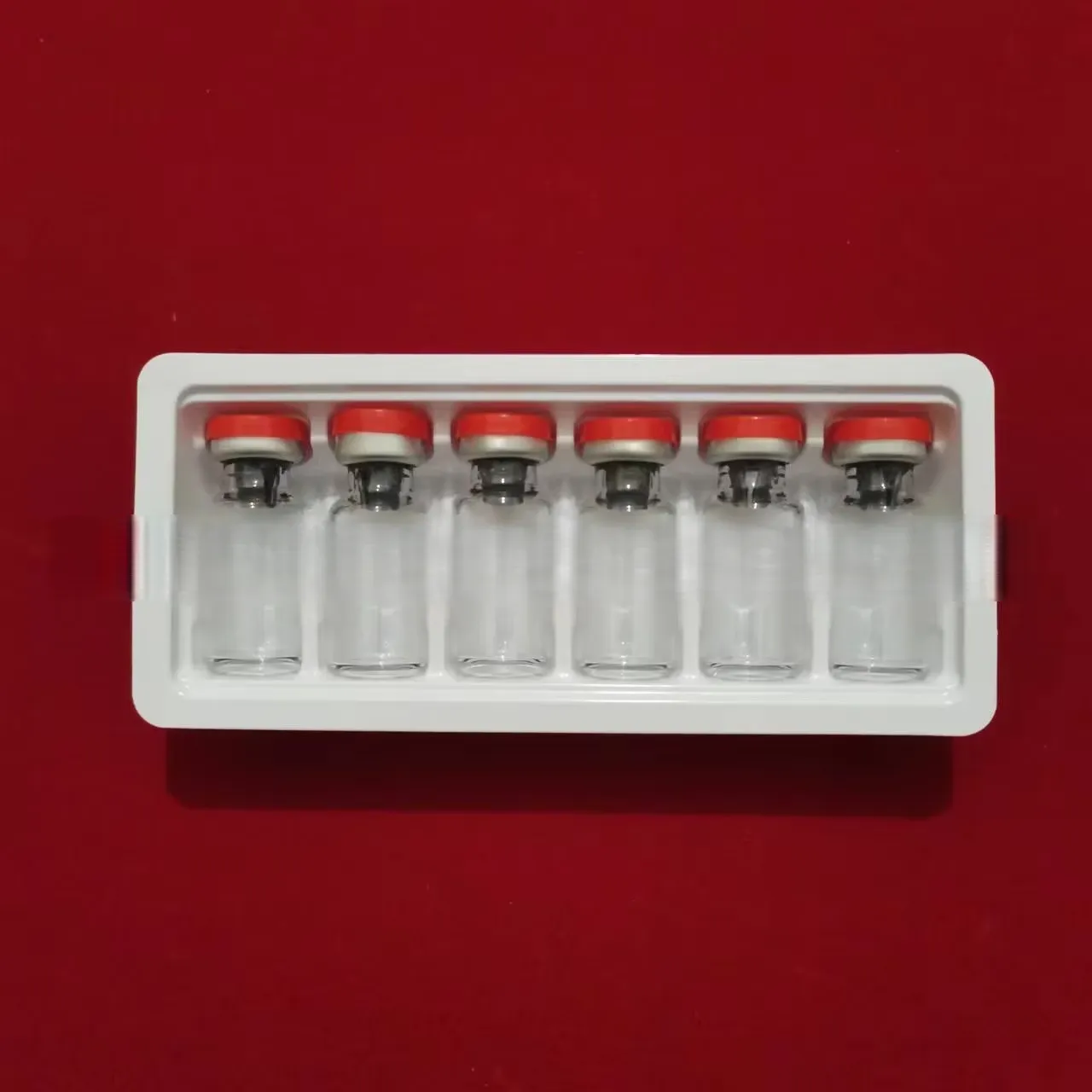

The six pockets are formed in a single lying row, each in two segments: the narrow upper segment clamps the vial under the crimp cap, and the wider lower segment carries the glass body. A clamped vial cannot roll out — even with the tray inverted. The same geometry that grips a standard 3ml vial still engages the neck of a shorter ⌀ 16 mm 2ml vial, which then sits with slight headroom in the pocket.
Stackable Box Liner for Gift Boxes
Empty trays stack solidly into a low block — 50 stacked trays stand about as tall as two coffee mugs — which cuts storage space and lets you freight air-free. In the gift box, a single loaded tray acts as the liner that stops six vials rattling against each other in transit.

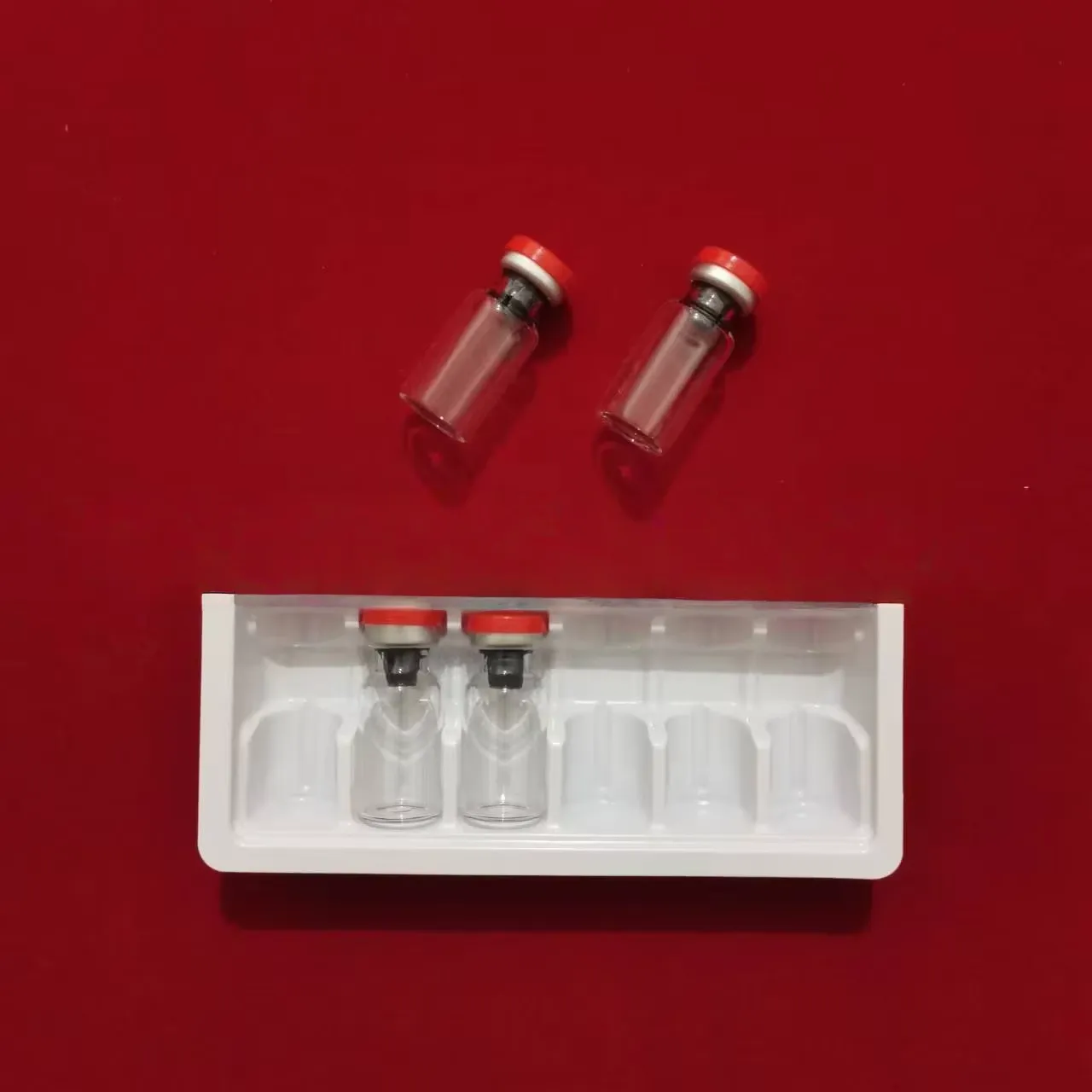

Fits 3ml Standard Vials — Seats ⌀16 mm 2ml Too
The tray is cut for standard 3ml glass vials with 13 mm crimp caps (⌀ 16 mm body). It also seats ⌀ 16 mm 2ml vials — the neck clamp engages, and the vial stays put with the tray inverted. We also supply 2ml glass vials,5ml glass vials,10ml glass vials, and amber glass vials — order tray and glass together and they arrive matched, from one factory, in one shipment.
Clear PVC Shown — Other Colors on Request
The shipped edition is clear/transparent rigid PVC: contents visible at a glance and a clean, medical-grade look inside the gift box. Other colors run on the same tool on request — send a Pantone reference and we quote from the same MOQ of 1,000 pcs. The tray ships unprinted; logo printing is generally not supported on the tray itself, and branding belongs on the outer gift box, which we also manufacture.
Why Choose This 6-Vial PVC Blister Tray
- Six vials in one liner — a compact 125 × 55 mm tray that drops straight into a peptide gift box.
- Neck clamp on every pocket — vials stay seated even when the tray is turned over.
- Stacks empty, freights flat — empty trays nest into a low block, cutting storage and shipping volume.
- Clear rigid PVC — contents and quantity visible without opening the box.
- Custom-friendly at MOQ 1,000 — any vial size, any pocket count, any layout.
Not Just 3ml — Any Vial Size, Any Cavity Count
This page shows the 3ml formats because they are what most customers ask for — but they are only examples from our thermoforming line. Custom work is the main part of our business: most of what we ship is built to a customer's vial drawing. Any vial size — 1ml, 2ml, 2.25ml, 5ml, 10ml, 20ml — any pocket count from 1 to 10+, any cavity layout, and colors other than clear can be produced from the same MOQ of 1,000 pcs. Send your vial dimensions and target count; we return a cavity proposal and quote within 24 hours, and a free sample in 5–7 days.
Materials & Construction
The tray is vacuum-formed from rigid clear PVC sheet — dimensionally stable, transparent, and economical at volume. The two pieces — base with the six lying pockets and the cover — are formed as a matched pair (photo above). Like all inner trays, it is protective organizational packaging, not a sterile barrier. Matching glass vials and the outer peptide gift boxes are produced in the same plant.
Factory QC, Drop Test & Quality Assurance
Every batch passes the same in-house test matrix as the rest of our vial packaging line:
| QC check | What we check & pass standard |
|---|---|
| Drop test | ~1.0 m free-fall with vials loaded, sampled from every batch; vials must stay seated and glass unharmed. |
| Inverted-carry check | Loaded tray turned upside down — no vial may slide or roll out of its pocket. |
| Stacking test | Empty trays stacked 20 high — the stack must stay square and separate without force. |
| Vial fit gauging | Pockets checked against a master 3ml vial and a ⌀ 16 mm 2ml vial every batch. |
| Climate cycling | Repeated high-humidity, high-temperature cycles simulating sea freight; no warping, no whitening. |
| Material lot log | Clear PVC sheet lot traceability on file for every production run. |
| Final inspection | AQL sampling on cavities, flashes and surface before packing. |
Release flow: batch sampling through the matrix above → re-work or scrap on any failure → final inspection → packing. Test equipment: drop rig, master vial gauges, climate chamber, force gauge.
Customization Process — Free Sample, MOQ 1,000, 15–25 Days
The route: send vial size and target quantity → cavity proposal + quote within 24 hours → free sample in 5–7 days, photographed for approval → confirmed order ships in 15–25 days. Custom cavity layouts are quoted on your vial drawing at the same MOQ of 1,000 pcs.
Pricing, MOQ & Order Volume
Indicative pricing for this item is quoted in a band of US $0.23 – US $0.27 / pc EXW Guangdong, before freight. Where you land inside that band is set by one thing above all: how large the run is. The lower end of the band is not an order-quantity price — it is the level we reach on high-volume and repeat programs. At the MOQ of 1,000 pcs the standard build is quoted at the figure shown below. We would rather put both numbers on the page than let you anchor on one we cannot hold at small quantities.
| Configuration | Order quantity | Indicative unit price (EXW) |
|---|---|---|
| Standard build — clear PVC, unprinted | MOQ — 1,000 pcs | US $0.27 / pc |
| Standard build — same construction, larger run | High-volume runs and repeat orders | towardsUS $0.23 / pc |
| Custom cavity layout — any vial size or pocket count, quoted on your vial drawing | 1,000 pcs and up | quoted per drawing |
In short: US $0.27 / pc for the standard clear build at the MOQ of 1,000 pcs; large and repeat programs step down towards US $0.23 / pc. This tray ships unprinted — logo printing is generally not supported on blister trays, and branding goes on the outer gift box instead. Every figure is indicative and subject to the specification on your drawing.
Prices are indicative, quoted EXW Guangdong, and exclude freight, duties and packing extras. The final quotation follows your specification, quantity, artwork and packing requirement — quotation within one working day, sample approved before mass production.
FAQ — 3ml 6-Vial PVC Blister Tray
The Vial Tray Family — Pair It With Our Boxes
This liner is one of two vial trays in our thermoformed line, and it pairs naturally with the boxes and tools we already ship:
- 3ml 6-Vial PVC Blister Tray — this page
- 3ml 2-vial blister tray — two vials, stacks loaded
- cylindrical vial case — seven 3ml vials, screw-on round shell
- 3ml single vial case — one vial, pocket size
- 10ml vial case — one larger vial, same round system
- 24-grid clear 3ml PP organizer box
- vial crimping pliers for 13 mm caps
Matching glass is available too — order the tray and the vials together and they arrive matched from one factory, in one shipment.
